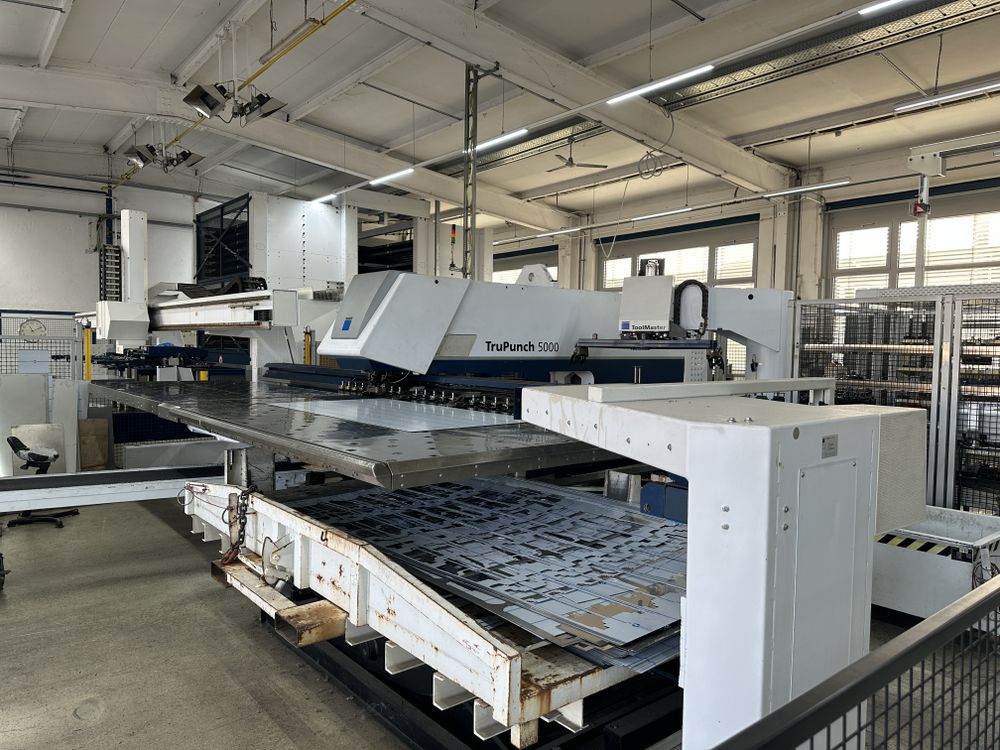

Trumpf TruPunch 5000 - 1600 (S10) (FMC) 22 to

Punching force: 22 to
Working area: 3050 x 1550 mm
Control: Siemens Sinumerik 840D
Max sheet thickness: 8 mm
Max material weight: 230 kg

Stable C-frame design
Coordinate guide for high precision machining
Linear magazine with 21 stations (incl. 4 clamps)
3-phase maintenance-free servo motors
Repositioning unit with programmable stripper
Ball-fitted tables
Parts chute 500 x 500 mm
Good parts container
Chip container
Automatic shutdown system

Electro-hydraulic punching head
Rotatable single tool adapter
Manual adjustable presser foot force
Programmable presser foot
Tool length compensation
Spray lubrication system
Forming capability
Sheet collision detection

12.0” TFT control panel
NC program management
Production planning system
Online help system
Integrated technology data
Diagnostic functions
USB interface
Network connection

CE marked safety system
Multi-beam light barriers
Rapid hydraulic shutdown

MultiTool function
MultiBend function
MultiShear function
Tapping function
Marking / rapid beading function
Deburring and roller technology
SoftPunch function
Active die system
Die spray lubrication

Individual clamp opening system
Repositioning cylinders
Part chute sensor
Air cushion installation
Chip conveyor with tilt container

Ball table with brush inserts
Blow-out device for small parts
Machine data recording system (MDE)

SheetMaster automation system
Suction frame 3000 x 1500 mm
Peeler cup system
Vacuum sensor
Central lubrication system
Double sheet detection sensor
Automatic clamp closing system
Scrap skeleton removal system (GripMaster)
Automatic tool magazine (ToolMaster, 40 tools)
Conveyor belt system
Storage system interface with safety devices
Second light barrier circuit
Second store interface
