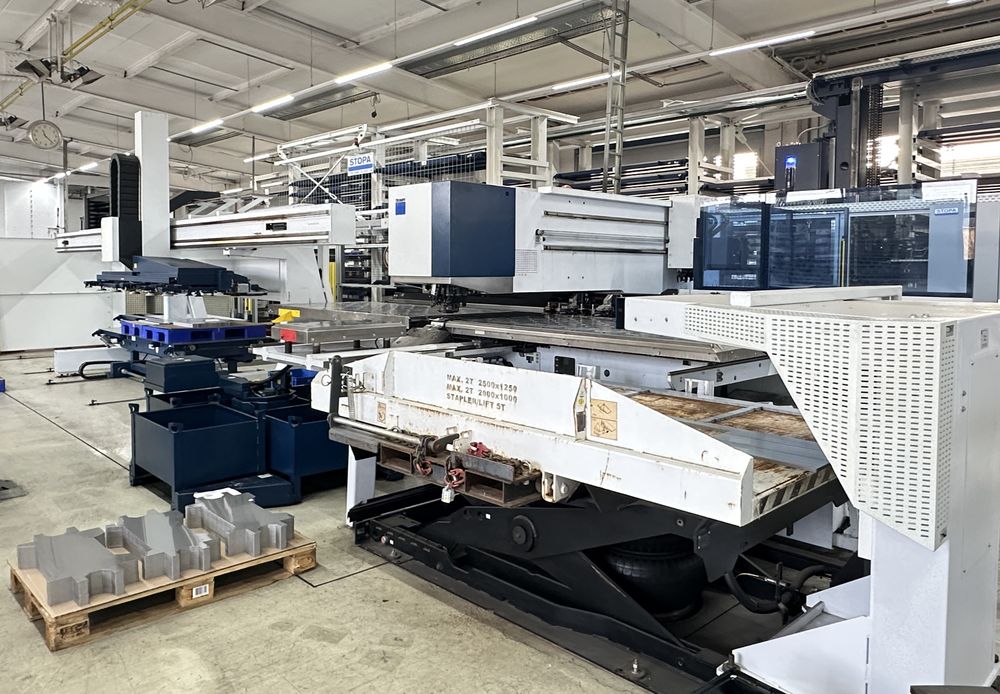

Trumpf TruPunch 5000 - 1300 (S12) (FMC) 22 to

Punching force: 22 to
Working area: 2550 x 1280 mm
Control: Siemens Sinumerik 840D
Max sheet thickness: 8 mm
Max material weight: 200 kg

C-frame construction
Coordinate guide system
Linear magazine with 21 tool/clamp positions
Hydraulic clamps (3 pcs)
Maintenance-free 3-phase servo drives
Repositioning unit with programmable stripper
Ball-fitted tables
Foot switch for clamp operation
Part chute system
Part removal flap 500 x 500 mm
Finished part container
Chip container
ToolMaster Linear retrofit capability
Index pin position (right inner side)

Electro-hydraulic punching head
Rotatable single station tool adapter
Manually adjustable presser foot force
Programmable presser foot position
Tool length compensation
Punch spray lubrication
Vacuum slug removal with monitoring
Forming capability
Stroke rate punching
Tool lubrication level monitoring
On-Demand-Drive system
Stripper position measurement with sheet thickness detection

19” TFT touch control panel
NC program management
Integrated technology data
Automatic shutdown system

USB interface
Network connection
RJ45 interface
Central Link data system

CE safety marking
Multi-beam light barriers
Fast drive shutdown
Sheet collision detection

MultiTool function
MultiShear function
Thread tapping function with thread breakage control
Engraving function
Deburring and roller technology
Adaptive stroke calibration
Smart Punch Monitoring with sheet format detection
Die spray lubrication with level monitoring
Active die with marking from below
Brush field change system for part chute

Retractable clamps (6 pcs)
Part chute sensor
Air cushion installation
Chip conveyor with tilt container
Blow-out device for small parts

Wireless Operation Point
MobileControl App
MDE interface

SheetMaster automation system (2500 x 1250 mm)
Suction frame system
Suction cups with peeler system (35 vacuum circuits)
Suction plate module with centering (27 vacuum circuits)
Vacuum sensor system
Central lubrication system
Double sheet detection
Optical loading sensor

GripMaster system (2500 x 1250 mm)
2 scrap skeleton grippers (1 with sensors)
Scissor table 400 mm
Tiltable scrap pallet (2500 x 1250 mm)

SortMaster Box system
ToolMaster Linear (54 tool stations)
Tool storage with 54 magazine positions
Storage system interface
2nd light barrier safety circuit
