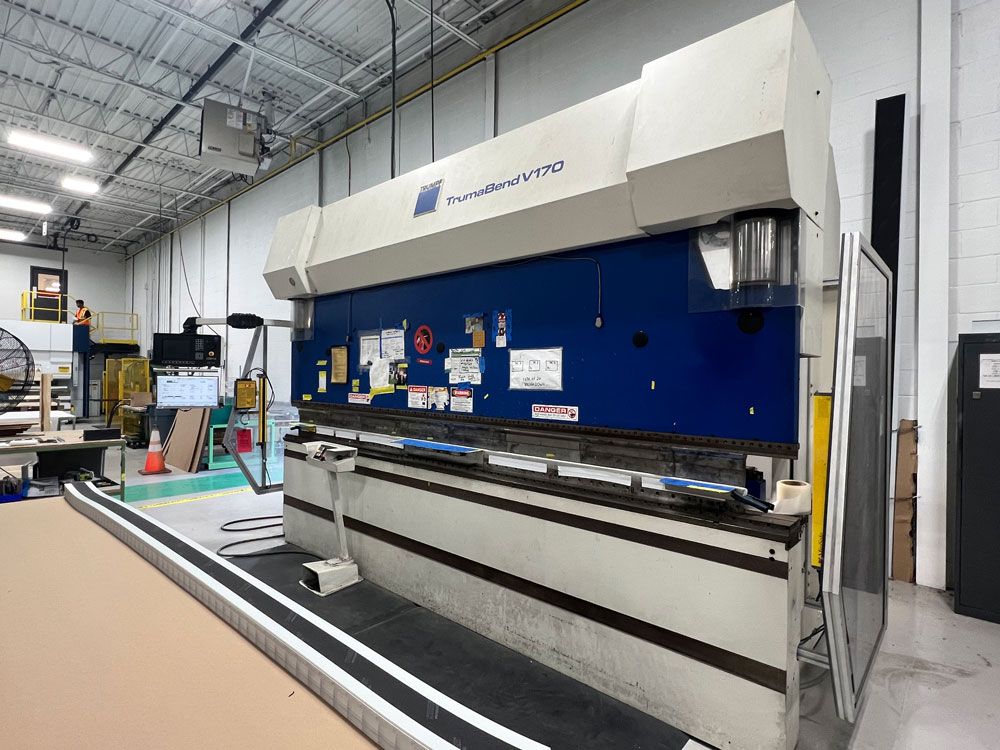

Trumpf V170 TRUMABEND 187 TON

CNC Hydraulic Press Brake
Capacity 187 TON
Overall bending length 160”
Distance between housings 145”
Stroke of ram 14.3”
Effective open daylight 21”
Advance speed 480 IPM
Pressing speed 26 IPM
Return speed 320 IPM
Maximum travel of back gauge 24”
Table width 4.7”
Distance floor to top of bed 41”
Throat depth 16”
Control Delem DA-65 W CNC
5 Axis CNC Y1
5 Axis CNC Y2
5 Axis CNC X
5 Axis CNC R
5 Axis CNC I (hemming axis)
Hard crank crowning
Physical rear and side guarding
Mechanical upper & lower clamping for Trumpf/Wila Tools
STI light curtains
Foot pedal with palm button stand
Four back gauge fingers
Motor 28 HP
Weight 39,000 LBS approx.
Dimensions 180″ × 84″ × 119″
