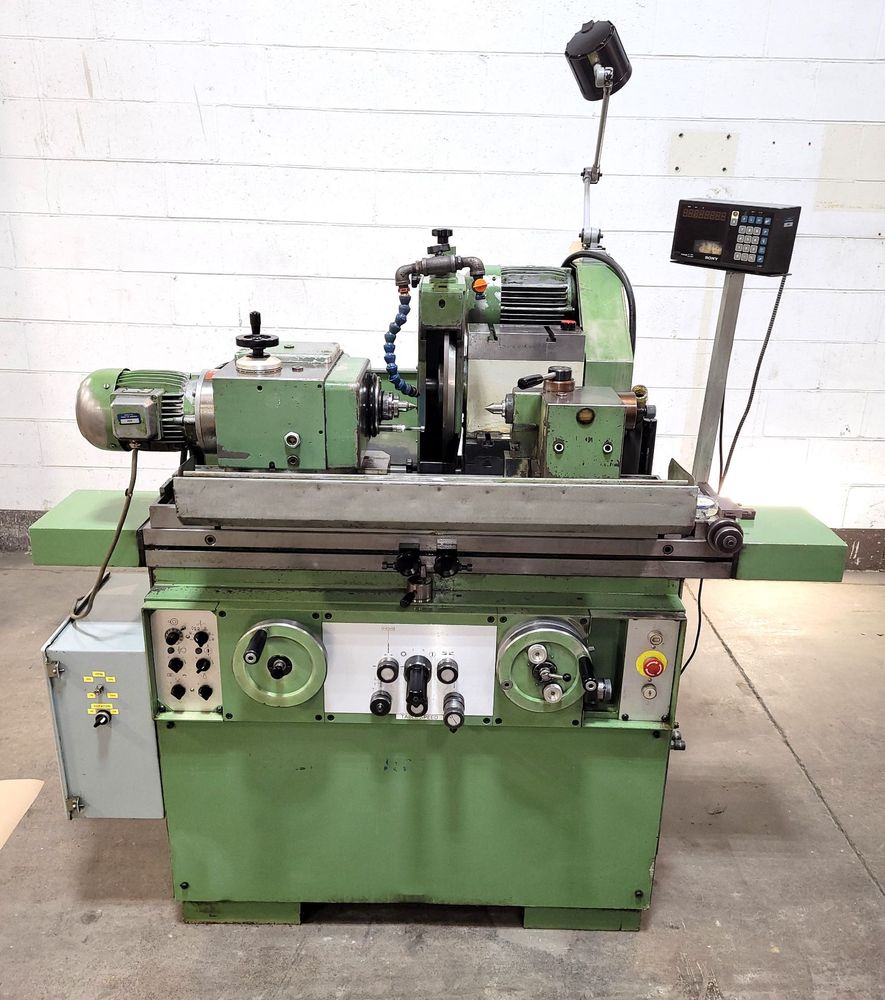

Tschudin HTG-310

TSCHUDIN HTG-310
1991

Swing over table with risers: 11.8"
Center height with risers: 5.9"
Distance between centers: 13.4"
Table swivel range: ±11°
Wheel size: 14" diameter x 2" width x 5" bore
Wheelhead swivel range: ±12°
Wheelhead motor: 4 HP (3 kW)
Rapid approach: 1.5"
Automatic infeed range: 0 to 0.050" on diameter
Infeed speed max: 1.2"/min
Sparkout duration: 2 to 30 seconds
Workhead spindle taper: #5MT
Workhead swivel range: 360°
Infinitely variable spindle speeds: 50 to 500 RPM
Tailstock center taper: #3MT
Tailstock center travel: 0.8"
Machine weight: 4,000 lbs
Hydrodynamic bronze-to-steel wheelhead bearings
Single-knob control for traverse and plunge grinding
Hydraulic power table traverse
Hydraulic automatic infeed
Hydraulic plunge infeed
Hydraulic rapid wheelhead advance and retract
Hydraulic sparkout timer
Dual live/dead workhead spindle
0.00002" graduated dial for positive stop
3/60/230-460 volt electrics
Factory risers
SONY LH51 single-axis digital readout
Dual-rate automatic plunge infeed (coarse/fine)
Coolant system with paper filtration
Coolant guarding
Work light
Balancing stand for grinding wheel
Two additional grinding wheel hubs with wheels
Dial indicator for table swivel adjustment
Center in workhead
Radius dresser
Workhead spindle supports 5C collet adapters
Machine manual and documentation included
Wired for 3/60/460 volts
Also wired for 3/60/480 volts, 5.6 KVA
