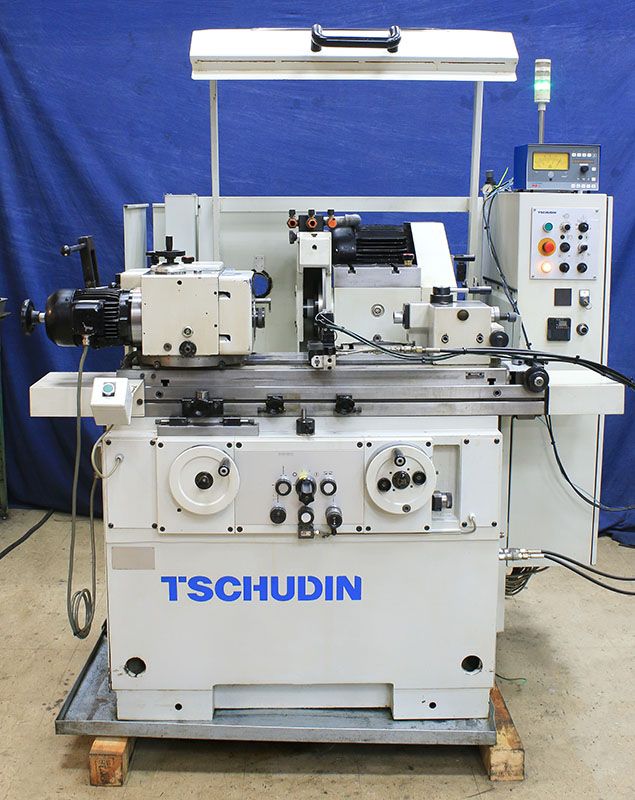

Tschudin HTG-310

Swing Over Table: 8"
Distance Between Centers: 13.4"
Table Speed: 0 to 195" IPM
Swiveling Range: +/- 11 Degrees
Wheel Size: 14" DIA x 2" W x 5" Bore
Wheelhead Swiveling Range: +/- 5 Degrees
Wheelhead Motor: 4 HP, 3 KW
Rapid Approach: 1-1/2"
Infeed-Automatic: 0 to 0.050" on Diameter
Infeed Speed, Maximum: 1.2"/min
Sparkout: 2 to 30 Seconds
Spindle Taper: #4MT
Workhead Swiveling Range: 360 Degrees
Infinitely Variable Spindle Speed: 50 to 500 RPM
Tailstock Taper of Center Bore: #3MT
Tailstock Travel: 0.8"
Approximate Machine Dimensions for Operation: 8'L x 6'D x 80"H
Approximate Weight: 4,000 lbs

Marposs In-Process Gauging
Marposs P3 Dimensional Control
Marposs "Unimar" "S" Universal Measurement Head
Dual Rate Automatic Plunge Infeed Option, "Coarse" & "Fine" Cycle Feed
Large Coolant System with Motorized Paper Filtration
Tschudin "Super-Precision" Workhead Option
Quick Acting Collet Closer, "W20" Collets
Dial Indicator for Table Swivel
Fine Taper Adjustment Option on Tailstock
Manual Coarse Adjustment Option for Wheelhead, Rapid Movement by Lever
3/60/230-460 Volt Electrics
Machine Wired for 3/60/480 Volts
Hydrodynamic Type Cylindrical Bronze to Steel Bearing Wheelhead
Simple One-Knob Control for Traverse & Plunge Grinding Cycles
Hydraulic Operation: Power Table Traverse, Automatic Infeed, Plunge Infeed, Rapid Wheelhead Advance and Retraction
Sparkout Timer
Dual Live/Dead Workhead Spindle
