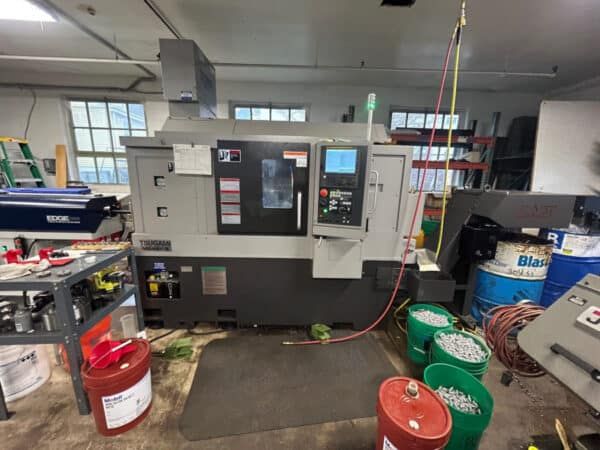

Tsugami CNC CONTROL 4,500 RPM M08SY-II 5 Axis

TSUGAMI M08SY-II
2023

Maximum machining diameter: 280mm (11.02")
Maximum bar capacity: 65mm (2.56")
Main spindle speed: 4,500 RPM
Back spindle speed: 4,500 RPM
Live tool speed: 5,000 RPM
Turret positions: 12

X-axis rapid traverse: 24 m/min
Z-axis rapid traverse: 27 m/min
A-axis rapid traverse: 27 m/min
Y-axis rapid traverse: 12 m/min

Main spindle motor: 10 / 15 HP
Back spindle motor: 7.4 / 10 HP
Live tool motor: 1.2 / 5 HP
Machine dimensions (W × D × H): 106" × 74" × 75"
Machine weight: 13,228 lbs
C-axis control: Main and sub spindle
Rigid tapping: Main, sub, and live tool
Turret: 12-position, all live-capable
High pressure coolant system: 300 PSI thru turret and ejector
Y-axis stroke: 3.94"
Main spindle: Integrated motor with C-axis and brake
Main spindle winding: 2-speed electronic for high torque at low speed
Sub spindle: Integrated motor with C-axis and brake
Spindle chiller: Temperature-controlled oil circulation for main and sub
Spindle and turret air purge: Included
Tool setter: Manual swing down
Main chuck: 8" 3-jaw hollow
Sub chuck: 6" 3-jaw hollow
Sub spindle bore: 2.04"
Main spindle bar capacity: 2.56"
Foot switches: For main and sub chucks
Pneumatic ejector stroke: 5.5"
Parts catcher: Included with conveyor
Thermal compensation: Included
Coolant tank: Removable, rear access
Turret access ports: Included
Coolant prep: Prepped for 1000 PSI thru turret
Internal work light: Included
Interface: RS232
Manual handle retrace: Included
Door interlock: Included
Bar feeder interface: Included
Tool set: Standard included
Leveling plates and bolts: Included
Transit clamps: Included
Tooling package: Included
Turning holders: 3 double (1.0" square shank)
Drill holders: 4 double (1.5" bore)
Boring sleeves: 2 × 0.750" ID, 2 × 1.00" ID
Cross live heads: 2 (ER25 collet taper)
Front live head: 1 (ER25 collet taper)
Back live head: 1 (ER25 collet taper)
Cut-off holder: 1 (1.0"/25.4mm square shank)
Work stopper: Included
Cutting hours: 273
Bar feeder: EDGE included
Chuck type: Collet and 3-jaw for main and sub
