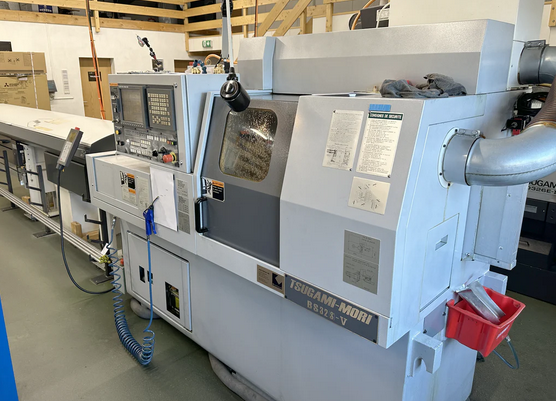

Tsugami CNC CONTROL 7000 t/min MORI BS32CE(S)-V 7 Axis

Number of axes 7
Number of spindles 2
Max turning diameter 8–32 mm
Max turning length 250 mm
Max drilling diameter 12 mm
Max threading diameter 10 M
Main spindle speed 200–7000 t/min
Back spindle speed 200–6000 t/min
Back spindle taper F37
Tool-holder stations 4
Number of tools 20
Number of driven tools 5
Turning tools 5 pce
Drilling tools 6 pce
Transverse processing tools 4 pce
Driven tool speed 200–5000 t/min
Driven tool power 0.9 kW
Spindle motor 5.5 kW
Back spindle motor 2.2 kW
Feeds 1–6000 mm/min
Rapid traverse 20 m/min
Air supply 5 bar
Machine weight 2800 kg
Overall dimensions L 2150 mm
Overall dimensions W 1500 mm
Overall dimensions H 1800 mm
Bar loader LNS Express 332
Bar loader max length 3000 mm
Bar loader diameter 3–32 mm
Parts catcher
Lamp
Oil-mist extractor
Set of collets
RS232 interface
Status light
