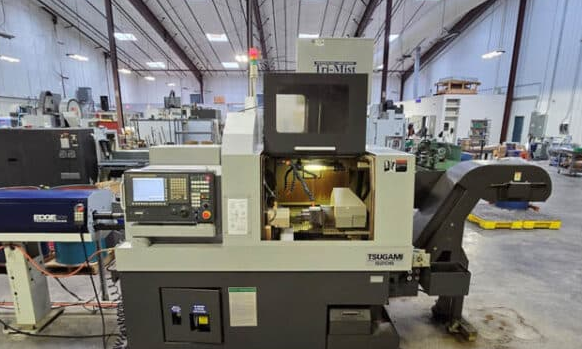

Tsugami CNC CONTROL Variable Speed S206 2 Axis

Chucking barstock diameter: 3 to 20 mm
Maximum machining length: 210 mm (Direct-drive rotary guide bushing)
Maximum machining length: 250 mm (Static guide bushing)
Maximum machining length: 80 mm (Carrier type rotary guide bushing)
Maximum machining length: 45 mm (Guide bushless)
Maximum drilling diameter: 10 mm
Maximum tapping diameter: M8
Deep hole drilling diameter: 8 mm
Maximum back spindle chucking diameter: 20 mm
Maximum back spindle drilling diameter: 8 mm
Maximum back spindle tapping diameter: M6
Maximum tool spindle drilling diameter: 6 mm (Front/Back tool post), 8 mm (Rear tool post)
Maximum tool spindle tapping diameter: M5 (Front/Back tool post), M6 (Rear tool post)
Main spindle speed: 200 – 10,000 rpm
Sub spindle speed: 200 – 10,000 rpm
Live tool speed: 8,000 rpm
Main spindle motor: 2.2 / 3.7 kW
Back spindle motor: 1.5 / 2.2 kW
Tool spindle motor: 0.75 kW (Front), 1.0 kW (Rear)
Tool storage capacity: 28 pcs (Standard), 39 pcs (Max)
Tool size: 12 mm x 12 mm x 100 mm
Rapid traverse rate: 32 m/min
Rapid traverse rate (X1,Y1): 24 m/min
Rapid traverse rate (Y2): 15 m/min
Control: Fanuc Series 32i-Model B
Bar feeder: Edge Minuteman 320 SE 12’
Adjustable angle mill/drill unit (double spindle)
Coolant: MP Systems 1000 PSI water soluble
Chip conveyor: Turbo
Parts catcher with exit conveyor
Rotary guide bushing for water soluble coolant
Mist collector: Tri-Mist 850
Machine dimensions: 83” x 47” x 75”
Machine weight: 7,300 lbs
