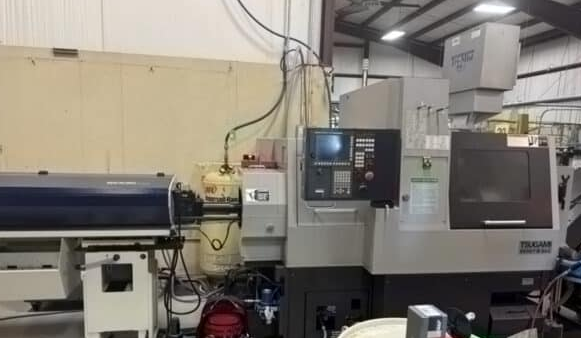

Tsugami Fanuc 31i-B5 CNC Control 8000 rpm SS327-5AX-III 4 Axis

B Axis Speed: 7000 rpm
C Axis

10.4 in Color LCD
Simultaneous All Axes Control
Avile Programming Software
B Axis Brake
B Axis Tool Spindle and Drive
Parts Catcher
Parts Conveyor
Sub Spindle Y Axis Positioning
Chucker Kit
Status Lights
High Pressure Coolant: 1000 psi
Mist Collector
Chip Conveyor
Through Sub Spindle High Pressure Coolant
Oscillation Cutting Function
Maximum Bar Diameter with Guide Bushing: 32 mm (1.25 in)
Maximum Bar Diameter Chucker Mode: 38 mm (1.5 in)
Maximum Machining Length: 70 mm (2.76 in)
Maximum Headstock Stroke with Guide Bushing: 320 mm (12.59 in)
Maximum Headstock Stroke without Guide Bushing: 70 mm (2.74 in)
Main Spindle Speed Range: 200–8000 rpm
Sub Spindle Speed Range: 200–8000 rpm
Main Spindle Motor Power: 3.7 / 5.5 kW
Live Tool Speed Range: 200–6000 rpm
8 Turning Tool Positions Main Spindle
8 Driven Tool Positions Main Spindle
4 Sub Side Driven Tools
4 ID Positions Main or Sub
4 Live Back Working Stations
4 Static Back Working Stations
Edge Patriot Magazine Bar Feeder Capacity: 0.118–1.5 in
Rotary Table Carousel: 21 in Diameter
Machine Weight: 7936 lbs
Machine Footprint: 84.6 x 50.3 x 79.1 in
