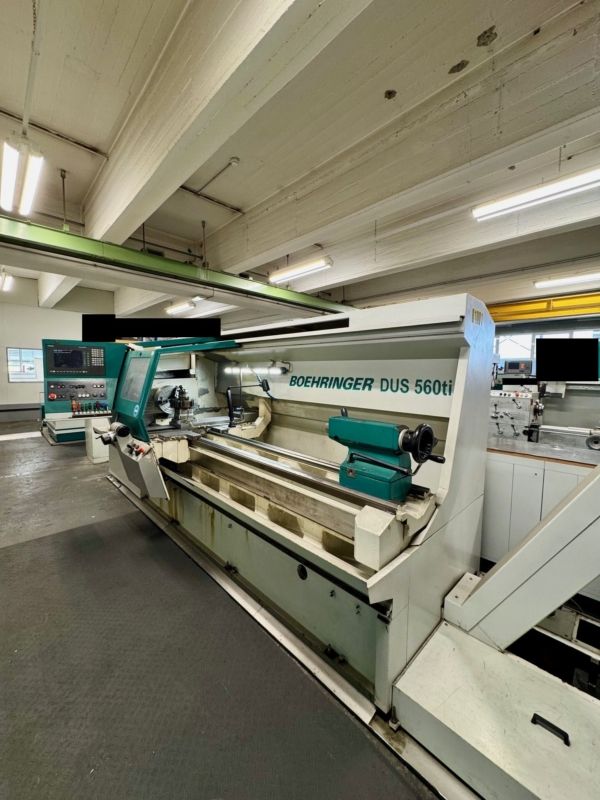

VDF Boehringer SINUMERIK 810D 2500 RPM DUS 560 TI 2 Axis

Control: SINUMERIK 810D
Coolant Pump 47 l/min
Main Spindle Brake
Quick Change Tool Holder
Fixed Steady Rest Ø 20 – 315 mm
Chip Conveyor
Documentation
CE Marking
Bar Capacity: 62 mm
Swing Over Bed: 570 mm
Turning Length: 2000 mm
Spindle Nose: DIN 55027 Size 8
Spindle Speed Range: 3 – 500 RPM
Spindle Speed Range: 15 – 2500 RPM
Longitudinal Feedrate Max: 10 m/min
Cross Feedrate Max: 5 m/min
Automatic Feed Longitudinal: 0.01 – 50 mm/rev
Automatic Feed Cross: 0.01 – 50 mm/rev
Max Feed Force Longitudinal: 12500 N
Tool Size: 32 x 25 mm
Thread Pitch Range: 0.1 – 400 mm
Tailstock Taper: MK 5
Tailstock Movement: Manual
Total Power Requirement: 35 kVA
Voltage: 400 V
Frequency: 50 Hz
Machine Dimensions: 5.98 x 2.10 x 1.98 m
Machine Weight: 5.6 t
