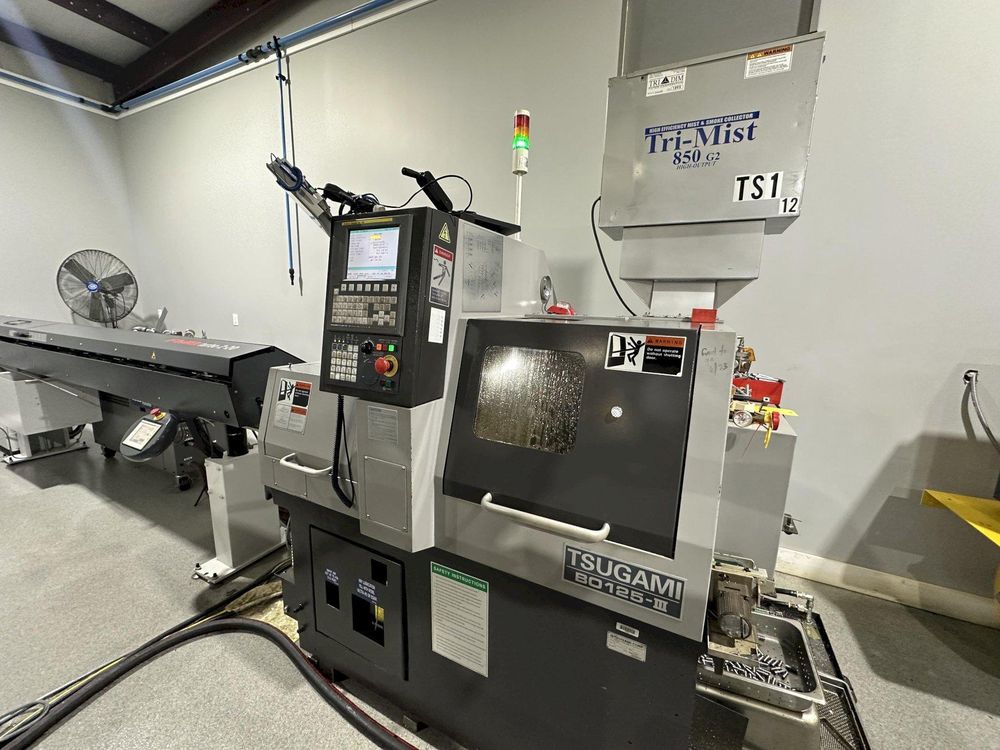

Tsugami Fanuc 0i-TD CNC Control 12,000 rpm B0125 III 2 Axis

Tsugami B0125 III
2015

Fanuc 0i-TD CNC Control
FMB Turbo 2-20 Bar Feeder
Tri-Mist 850 G2
Parts Conveyor
MP Coolant System
CNC Control: Fanuc 0i-TD
Number of axes: 5
Live tooling speed: 8,000 rpm
Tailstock: No
Y Axis: Yes
Bar feeder: Yes
Sub spindle: Yes
Sub spindle speed: 12,000 rpm
Machine dimensions: 66" x 45" x 67"
Machine weight: 4,500 lbs

Working barstock diameter: 3 mm (.12 in.) to 12.7 mm (.50 in.)
Max machining length rotary guide bushing: 170 mm (6.69 in.)
Max machining length chucker mode: 45 mm (1.77 in.)
Max main spindle drilling diameter: 7 mm (.28 in.)
Max main spindle tapping diameter: M6 x 1
Max back spindle chucking diameter: 12 mm (.47 in.)
Max back spindle drilling diameter: 7 mm (.28 in.)
Max back spindle tapping diameter: M8
Max cross drilling diameter: 7 mm (.275 in.) / ER11 and 10 mm (.393 in.) / ER16
Max cross tapping diameter (option): M5 x 0.8
Max tool spindle slotting cutter diameter: 30 mm (1.18 in.)
Max back live drilling diameter: 6 mm (.24 in.)
Max back live tapping diameter: M5
Main spindle speed range: 200 to 12,000 min-1

Back spindle speed range: 200 to 12,000 min-1 (10,000 max with ejector rod)
Rotary guide bushing speed direct drive: 200 to 12,000 min-1
Rotary guide bushing speed carrier type: 200 to 8,000 min-1

Live tool speed: 200 to 8,000 min-1
Total tool storage capacity: 21
Tool size: 0.5 in. x 0.5 in. square, 20 mm round
Rapid traverse rate total: 32 m/min (105 ft/min)
Rapid traverse rate X1/Y1: 24 m/min (78.74 ft/min)
Rapid traverse rate Y2: 15 m/min (49 ft/min)
Controlled linear axes: 5-Axis

Main spindle power: 2/3 Hp (1.5/2.2 kW)
Back spindle power: 2/3 Hp (1.5/2.2 kW)
Axis power X1,X2,Y1,Z1,Z2: 0.7 Hp (0.5 kW)
Cross drill power (option): 1 Hp (0.75 kW)
Coolant pump power: 0.4 Hp (0.25 kW)

Lubricating oil pump power: 3 W
Power source requirement: 11 kVA
Compressed air requirement: 0.4 Mpa or above
Air discharge rate: 50 NL/min
Coolant tank capacity: 180 L
Machine dimensions (W x D x H): 1655 x 1135 x 1700 mm (65.16” x 44.29” x 66.93”)
Weight: 2000 kg (4,409 lbs)
