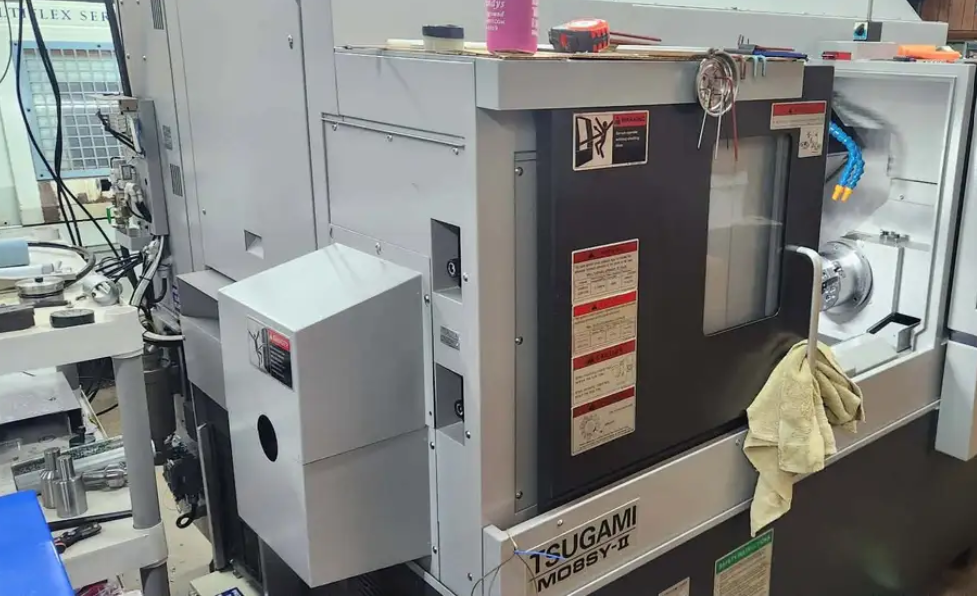

Tsugami Fanuc 0i-TF CNC 4500 RPM M08SY 5 Axis

Rapid traverse X-axis: 24 m/min
Rapid traverse Z-axis: 27 m/min
Rapid traverse A-axis: 30 m/min
Rapid traverse Y-axis: 12 m/min
X-axis travel: 221 mm
Z-axis travel: 400 mm
Y-axis travel: ±50 mm
A-axis travel: 506 mm
Y-axis
Sub spindle
Control: Fanuc 0i-TF CNC
Live tooling
Chip conveyor
Tool presetter
Maximum swing: 20.5 in
Maximum turning diameter: 280 mm
Maximum machining diameter (bar): 65 mm
Maximum machining length: 380 mm
Bar capacity: 65 mm
Main spindle speed: 4500 RPM
Main spindle motor: 7.5/11 kW
Main spindle nose: JIS A2-6
Main spindle bore: 73 mm
Chuck size: 8 in
Sub spindle speed: 4500 RPM
Sub spindle motor: 5.5/7.5 kW
Sub spindle bore: 59 mm
Sub spindle chuck: 6 in
Live tool speed: 5000 RPM
Live tool motor: 2.2/3.7 kW
Turret: 12 stations
OD tool shank: 25 mm
Drill holder diameter: 40 mm
Power requirement: 30 kVA
Compressed air: 0.5 MPa
Air consumption: 100 NL/min
Machine dimensions: 2470 × 1850 × 1930 mm
Machine weight: 7720 lb
