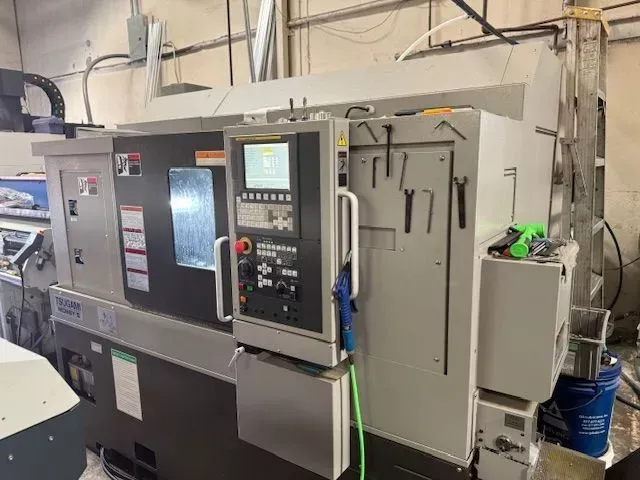

Tsugami Fanuc 0i-TF CNC Color Control 4500 RPM M08SY 5 Axis

X1 Axis Travel: 8.7"
Z1 Axis Travel: 15.75"
Y1 Axis Travel: 3.95"
W Axis Travel Sub Spindle: 19.92"
C Axis Indexing 1: 0.00
C Axis Indexing 2: 0.00
Control: Fanuc 0i-TF CNC Color Control

Bar Capacity 1: 2.5"
Bar Capacity 2: 2"
Turning Diameter: 11.2"
Turning Length: 14.96"
Distance Between Spindles: 19.92"

Spindle Bore Diameter 1: 2.99"
Spindle Speeds 1: 4,500 RPM
Spindle Horsepower 1: 15 HP
Spindle Nose 1: A2-6
Spindle Bore Diameter 2: 2.44"
Spindle Speeds 2: 4,500 RPM
Spindle Horsepower 2: 10 HP
Spindle Nose 2: 140 Flat

Turret Tool Positions 1: 12 station
Turret Rotary Tool Speeds 1: 5,000 RPM
Turret Rotary Tool Horsepower 1: 5 HP

Rapid Traverse Rate X1: 945 ipm
Rapid Traverse Rate Z1: 1062 ipm
Rapid Traverse Rate Y1: 472 ipm

Chuck Size 1: 8"
Chuck Size 2: 6"
Machine Weight: 13,100 lb
Chip Conveyor
All Available Tool Holders
All Available Manuals
Tool Eye

6' Magazine Bar Feed System
Work Catcher with Conveyor
Cross O.D. Mill Head (2)
Double I.D. Front/Back Mill Head (1)
I.D. Mill Head (1)
Rigid Tap on the Milling Head
Custom Macro
Variable Lead Thread Cutting
Less Than 1000 Cutting Hours
