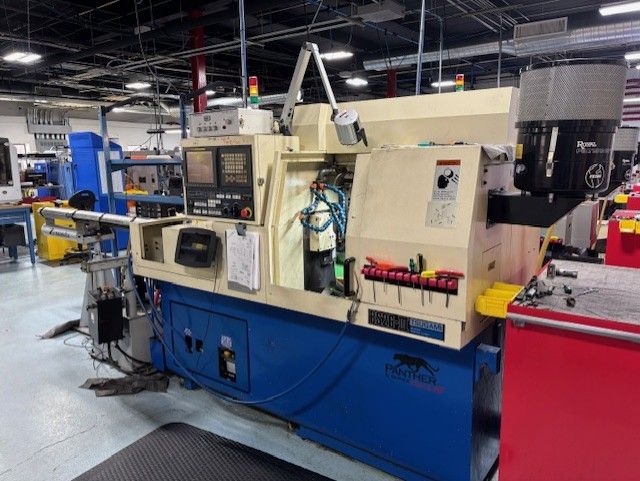

Tsugami Fanuc 18iTB CNC 7,000 rpm BS26(C)-III 4 Axis

Maximum Bar Diameter: 1.023"
X1 Axis Travel: 2.00"
X2 Axis Travel: 7.90"
Z1 Axis Travel: 8.21"
Z2 Axis Travel: 7.88"
T1 Axis Travel: 5.90"
T3 Axis Travel: 5.11"
C-Axis Main Spindle Increment: 0.001 deg
C-Axis Sub-Spindle Indexing: 5 deg increment
Control: Fanuc 18iTB CNC
Horsepower Main Spindle: 5 HP
Maximum Main Spindle Speed: 7,000 rpm
Sub-Spindle Maximum Diameter: 1.023"
Sub-Spindle Maximum Drill Capacity: 3/8"
Sub-Spindle Maximum Tap Capacity: 5/16"
Sub-Spindle Speed: 2,000–7,000 rpm
Sub-Spindle Motor Power: 3.0 HP
Number of Tool Stations: 6 OD, 4 ID, 5 ID/OD B/W Tools
Rotary Tools: 4 Cross Driven & 2 Driven Endworking Tools
End Working Tool Positions: 4 (2 upper positions driven)
Maximum Speed Cross Tool T10–T12: 200–5,000 rpm
Maximum Speed Cross Tool T13: 120–3,000 rpm
Driven Tool Motor: 1.5 HP
Turning Tool Size: 5/8" square
Auxiliary Slide Motion Synchronous to Z1: 7.88"
Machine Dimensions (L x W x H): 72" x 46" x 67"
Machine Weight: 5,300 lbs
Spego 64-8.5Z Barfeed
High Pressure Coolant
