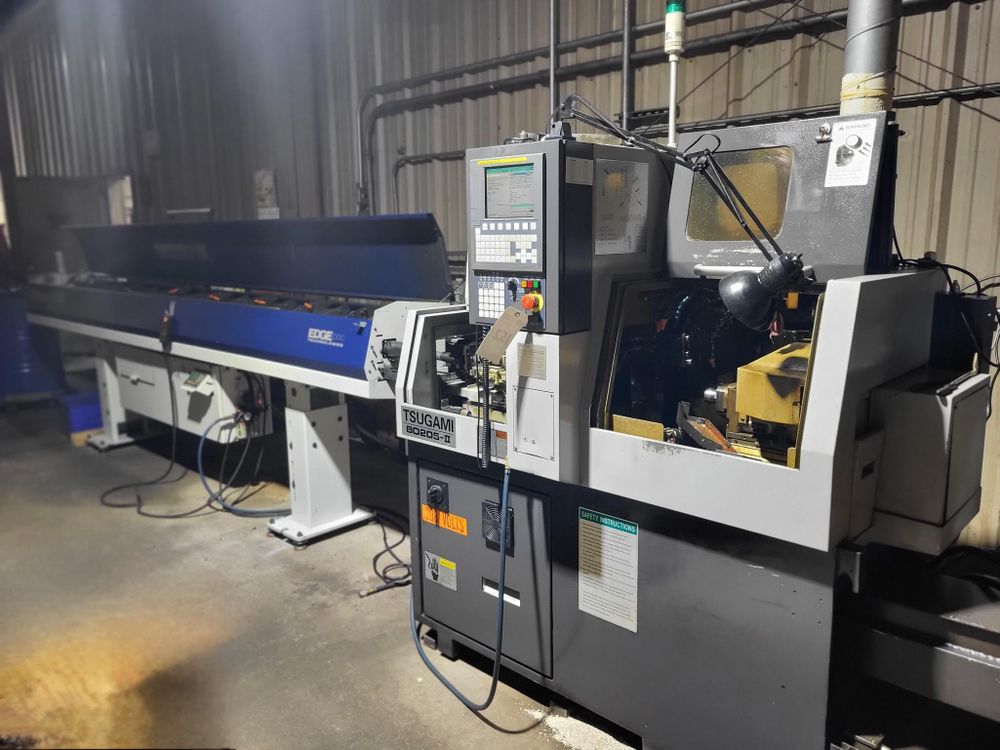

Tsugami Fanuc OI-TD CNC Control 10,000 RPM B0205-II 5 Axis

Total Axis: 5
Max Barstock Diameter: 20 mm
Max Machining Length: 210 mm
Max Machining Length (Guide Bushing): 45 mm
Max Main Spindle Drilling Diameter: 10 mm
Max Main Spindle Tapping Diameter: M10
Max Back Spindle Chucking Diameter: 20 mm
Max Back Spindle Drilling Diameter: 8 mm
Max Back Spindle Tapping Diameter: M8
Main Spindle Speed: 200 – 10,000 RPM
Main Spindle Motor: 5 HP
Back Spindle Speed: 200 – 12,000 RPM
Back Spindle Motor: 3 HP
Total Tool Capacity: 21
Tool Size: 0.5" × 0.05" × 3.35"
Machine Dimensions: 66" × 45" × 67"
Weight: 4,410 LBS
Fanuc OI-TD CNC Control
Edge Technologies MM320 Bar Feeder
MP Systems AT V-2 H08 SD High Pressure Oil Coolant System
LNS Chip Conveyor
