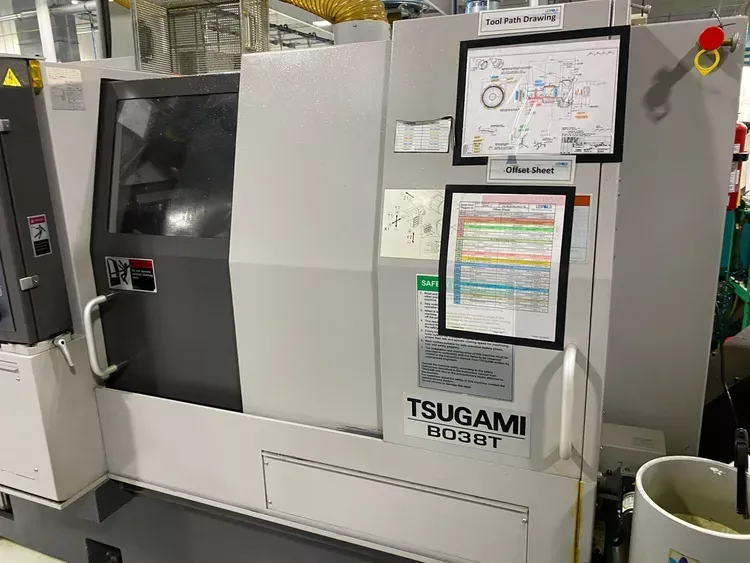

Tsugami FANUC 32I-B CNC 5,000 RPM B038T 2 Axis

X-Axis Travel: 9.84" (headstock stroke)

Main Spindle Speed: 5,000 RPM
Main Spindle Horsepower: 15 HP
Main Spindle Drilling Diameter: 0.625"
Main Spindle Tapping Size: M14
Sub Spindle Speed: 7,000 RPM
Sub Spindle Horsepower: 7.5 HP

Max Sub Spindle Machining Diameter: 1.5"
Max Sub Spindle Drilling Diameter: 0.55"
Max Sub Spindle Tapping Size: M12

Front Tool Post: 5 Turning, 2 Live
Front Tool Post Cross Drill Speed: 5,000 RPM
Front Tool Post Cross Drilling Diameter: 10 mm
Front Tool Post Cross Tapping Size: M6
Back Tool Post: 6 (3 Fixed, 3 Live)
Back Tool Post Live Tool Speed: 6,000 RPM
Live Tool Turret: 8 Station, 3 Axis
Live Tool Spindle Speed on Turret: 7,000 RPM
Live Tool Turret Drilling Diameter: 16 mm
Live Tool Turret Tapping Size: M10
Tool Spindle on Back Tool Post: 1.34 HP

Cross Drill on Front Tool Post: 1.34 HP
Live Tool (Turret): 1.87 HP
Control Type: FANUC 32I-B CNC
Bar Feed System: FMB 3-38 Magazine
High Pressure Coolant System: 2,000 PSI, 8 Outputs
TMAC Tool Load and Breakage Monitoring
Fire Suppression System
All Rotary Driven Tools

Main Spindle Collet Chuck Unit
Back Spindle Collet Chuck Unit
Spindle Cooling for Main and Sub Motors
Continuous Thread Cutting
Rotary Tool Drive System
Coolant Through Sub Spindle
MH 500 Chip Conveyor
Operating Time: 1,497 Hours
Cutting Time: 950 Hours
Power-On Time: 27,190 Hours
All Manuals, Schematics, and Documentation
