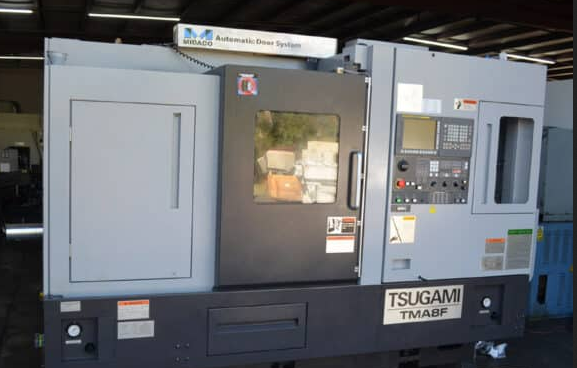

Tsugami Fanuc 31i-B5 5000 rpm TMA8F 4 Axis

C-axis main spindle
C-axis sub spindle
B-axis tool spindle
Control Fanuc 31i-B5
Automatic tool presetting device
Auto door
High pressure coolant pump 1000 PSI
Fanuc interruption type custom macro
Fanuc stored stroke limit check
Fanuc tool offsets 999 pairs
Fanuc tool life management
Fanuc external control of I/O device
Fanuc second feedrate override
Fanuc fast Ethernet / data server PCG
Bar capacity 65 mm
Max turning diameter 220 mm
Max turning length 580 mm
Main spindle speed 5000 rpm
Main spindle motor 20 hp
Sub spindle speed 5000 rpm
Sub spindle motor 15 hp
Tool spindle speed 20000 rpm
Tool spindle motor 15 hp
Automatic tool changer 60 positions
Tool interface Capto C4
Tool presetter
Auto door
Chip conveyor LNS Turbo Compact
Mist collector Exomist HPMC series
Bar feeder Edge Rebel V-65 servo short barfeeder
V-tray kit for barfeeder
Extended spindle liner with coolant collector for 4-foot bars
Machine footprint 145.7 × 83.7 × 88.6 in
Machine weight 18739 lb
