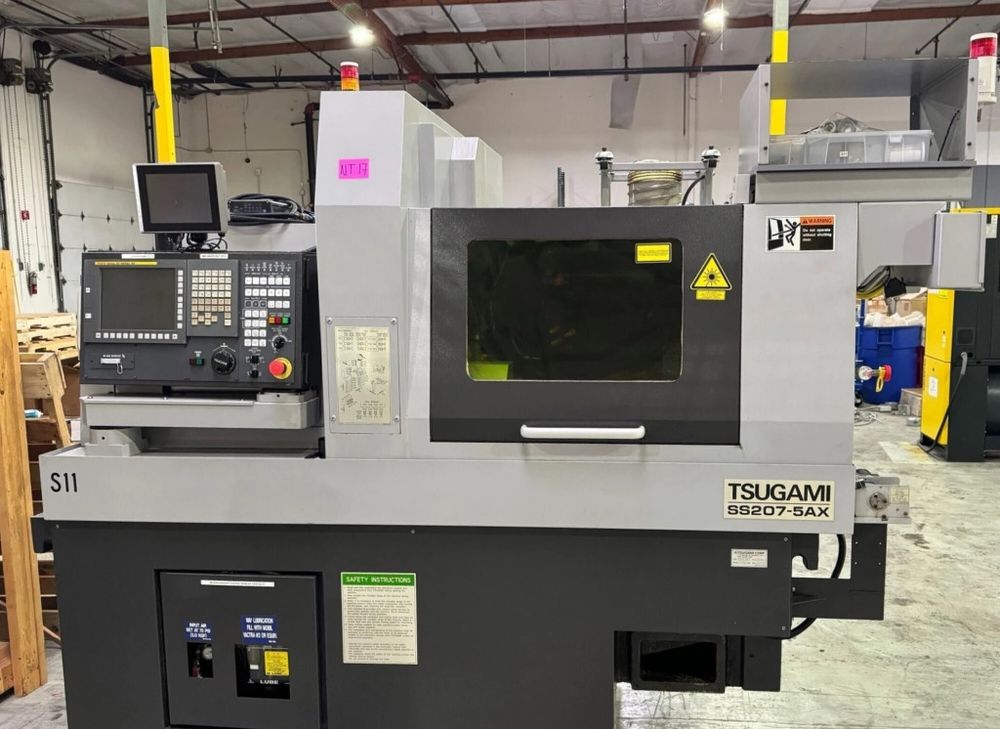

Tsugami Fanuc 31i-B5 CNC Control with 10.4" LCD 10,000 rpm SS-207-5-AX 4 Axis

Rapid Traverse Rate – 32 m/min
B1 Axis Tool Spindle Positioning Angle – 0° to 110°
B1 Axis Positioning Method – Servo controlled
Number of Tool Positions – 6 (3 main and 3 sub)
Rotary Tool Speed – 5,000 rpm
Main Spindle Tool Collet – ER16
Sub Spindle Tool Collet – ER11
Fanuc 31i-B5 CNC Control with 10.4" LCD
250 Watt SPI Fiber Laser System
Rigid Tapping
Simultaneous all axes control
AC servo axes control
Main Spindle Collet Chuck unit (S&M TF25)
Back Spindle Collet Chuck unit (S&M TF25)
Parts catcher with exit conveyor and basket (max part length = 3.15")
Cutting oil tank with coolant tank level detector (40 Gal. Capacity)
Sub spindle air blast
Integral motor driven guide bushing unit
Door interlock with switches
Main spindle C axis with brake
Sub spindle C axis with brake
Spindle Cooling for Main, Sub and Guide Bushing Motors
Air/Oil pressurized driven tool gearbox units
Air pressurized guide bushing unit
Centralized lubrication system with oil level detector (0.21 Gal. Capacity)
Leveling bolts & pads
Hand tools (spanners, wrenches, etc.)
One complete set of manuals
Machine test report
Parameter list
(8) ½” Square turning tool positions main spindle
(3) Driven tool positions main spindle, cartridge type
(8) ID positions, main or sub
(4) Static back working stations – ID or Turning
(2) Main spindle deep hole drill positions (max 100 mm)
Up to 38 tool positions possible
Maximum Machining Diameter – 0.787″
Maximum Machining Length – 8.26″/Chucking
Back Spindle Max. Diameter – 0.787″
Back Spindle Front Ejection Maximum Length – 3.2″
Main Spindle Speed – 200–10,000 rpm
Back Spindle Speed – 200–10,000 rpm
Rotary Tool Spindle Speed – 200–8,000 rpm
Main Spindle Motor – 3/5 hp
Back Spindle Motor – 2/3 hp
Rotary Tool Motor – 1 hp
Coolant Motor – 0.5 hp
Input Power – 6 KVA
Center Height – 39.37″
Machine Weight – 7,260 lbs
Laser Power – 25–250W Fiber
Laser Cooling System – Water Cooled
Laser Enclosure Classification – Class 1
Max Cutting Speed – 19.685″/sec
Laser Wavelength – 1070 ± 10 nm
Frequency – 2–20 kHz
Pulse Width – 0–CW
Nozzle Standoff Adjustment – NC controlled
Variable Gas Pressure – 5 to 350 psi
Number of Gas Connections – 2
Through Work Piece Coolant – 246 psi
Coolant Front Feed – up to 1,000 psi
Tube Maximum Wall Thickness – 0.039″
Tube Minimum OD – 0.080″
Tube Maximum OD – 0.787″
Tube Minimum OD:ID Ratio – 3:1
Optic Focal Length – f=100 mm
Beam Reduction (Optional) – 0.5/0.7
Beam Expansion (Optional) – 1.4/2.0/2.8
Exchangeable protection glass – Yes
Cutting Nozzle Diameter – 1 mm to 3 mm
