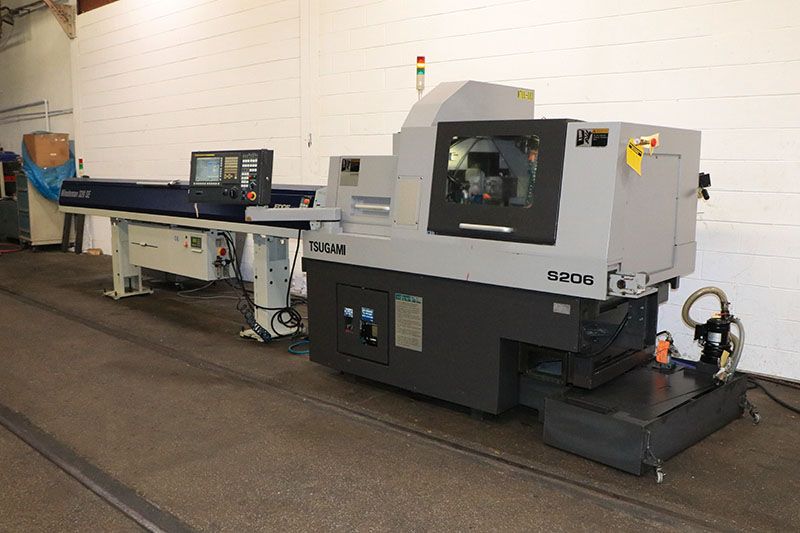

Tsugami Fanuc 31iTB 12,000 rpm S206 CNC Swiss Type Lathe Rotary Axes: X1, Z1, Y1, X2, Y2, Z2, C1, C2

Feedrate / Rapid Traverse: 32 m/min
X1, Y1 Axes Feedrate: 24 m/min
Y2 Axis Feedrate: 15 m/min
Control: Fanuc 31iTB
Max Bar Diameter: 20 mm (3/4")
Max Machining Length Direct Drive Rotary GB: 210 mm
Max Machining Length Static Guide Bushing: 250 mm
Max Machining Length Carrier Type Rotary GB: 80 mm
Max Machining Length Bushingless: 45 mm
Max Drilling Diameter: 10 mm
Max Tapping Diameter: M8
Deep Hole Drilling Diameter: 8 mm
Max Back Spindle Chucking Diameter: 20 mm
Max Back Spindle Drilling Diameter: 8 mm
Max Back Spindle Tapping Diameter: M6
Max Tool Spindle Drilling Diameter Front Tool Post / Back Tool Post: 6 mm
Max Tool Spindle Drilling Diameter Rear Tool Post: 8 mm
Max Tool Spindle Slotting Diameter (T1): 30 mm
Main Spindle Speed: 200 - 12,000 rpm
Back Spindle Speed: 200 - 12,000 rpm
Rotary Guide Bushing Carrier Type: 200 - 8000 rpm
Rotary Guide Bushing Direct Drive Type: 200 - 12,000 rpm
Tool Spindle Speed: 200 - 8000 rpm
Tool Storage Capacity Std / Max: 24 pcs / 35 pcs
Tool Size: 12 x 12 x 100 mm
Main Spindle Motor: 2.2 / 3.7 kW
Back Spindle Motor: 1.5 / 2.2 kW
Tool Spindle Motor Front Tool Post: 0.75 / 1.1 kW
Tool Spindle Motor Rear Tool Post: 1.0 kW
X1-X2-Z1-Z2-Y2 Axes Motor: 0.5 kW
Y1 Axis Motor: 0.75 kW
Lubricating Pump: 3 W
Power Source Requirements: 14.3 kVA
Compressed Air Requirement: 0.4 MPa or above
Air Discharge Rate: 40 NL/min
Machine Dimensions (approx): 2110 x 1200 x 1885 mm (83" x 47" x 74")
Machine Weight (approx): 3200 kg (7055 lbs)
Edge Technologies Barfeed
Mist Buster Mist Collection Unit
Fire Suppression
High Pressure Unit
