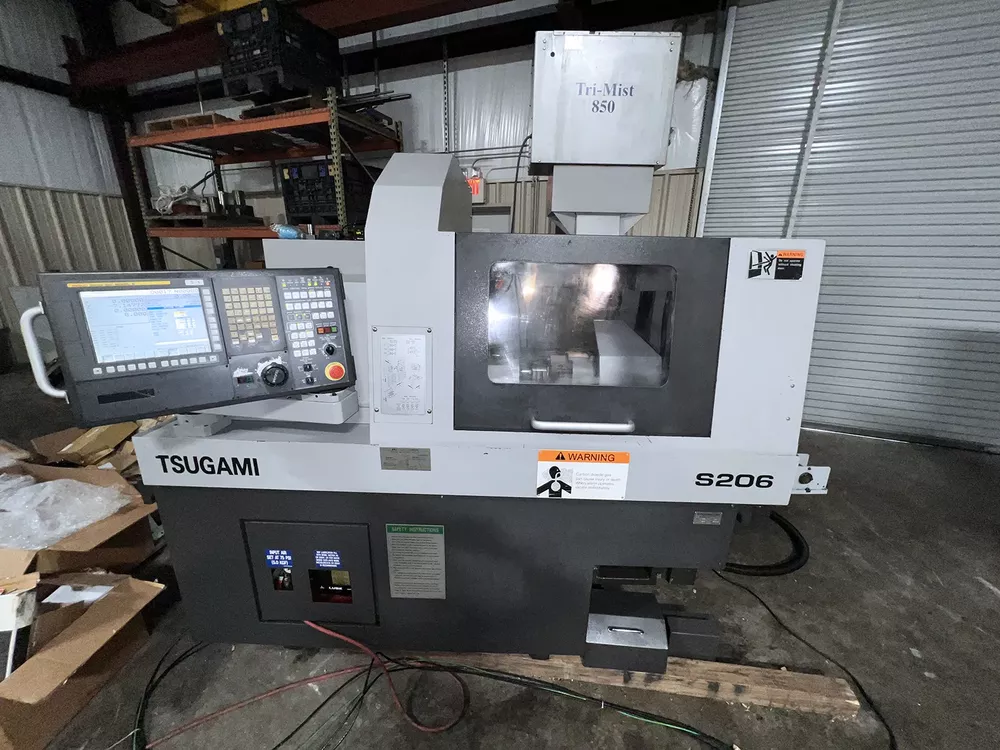

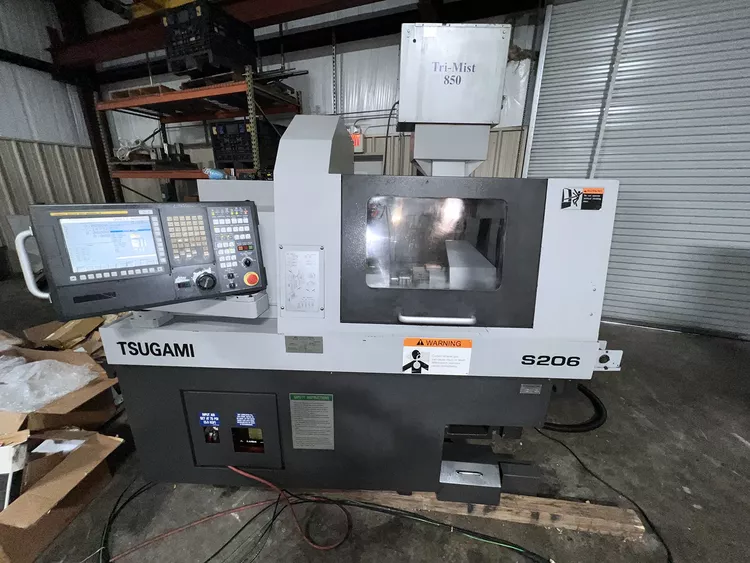

Tsugami Fanuc 32i-MB CNC Control 10000 RPM S206 6 Axis

Tsugami S206
2012

CONTROL: Fanuc Series 32i-Model B
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 9.843″ (250 mm)
Max Turning Length with Gripping Unit: 8.26″ (210mm)

Max Bar Capacity: 0.79″ (20 mm)
Max tool positions: 25
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M8

Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max. Back Spindle Tapping Diameter: M6

Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
Max. Tool Spindle Drilling Diameter: .314″ (8 mm)
Max. Back Tapping Diameter: M5

Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: .79″ (20 mm)
Main Spindle Speed: 10000 RPM

Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 60° (Full C-Axis)
Back Spindle Speed: 2000 RPM

Cross Turn Stations: 8
Cross Drill Stations: 3
Main/Sub Drill Stations: 5
Sub Drilling Stations:: 4
Live cross mill stations: 2
Live sub milling stations: 4
Driven Tool Speed: 8000 RPM
DRIVEN TOOL MOTOR: 75 kw (Front Tool Post) 1 kw (Rear Tool Post)

MACHINE EQUIPPED WITH
Fanuc 32i-MB CNC Control
Controlled Axes (Liner Axes) X1/ X2/ Y1/ Y2/ Z1/ Z2
Edge Minuteman 320 SE Bar Feeder
Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Part Catcher
Coolant Tank
Chip Conveyor
Tri-Mist Collector
