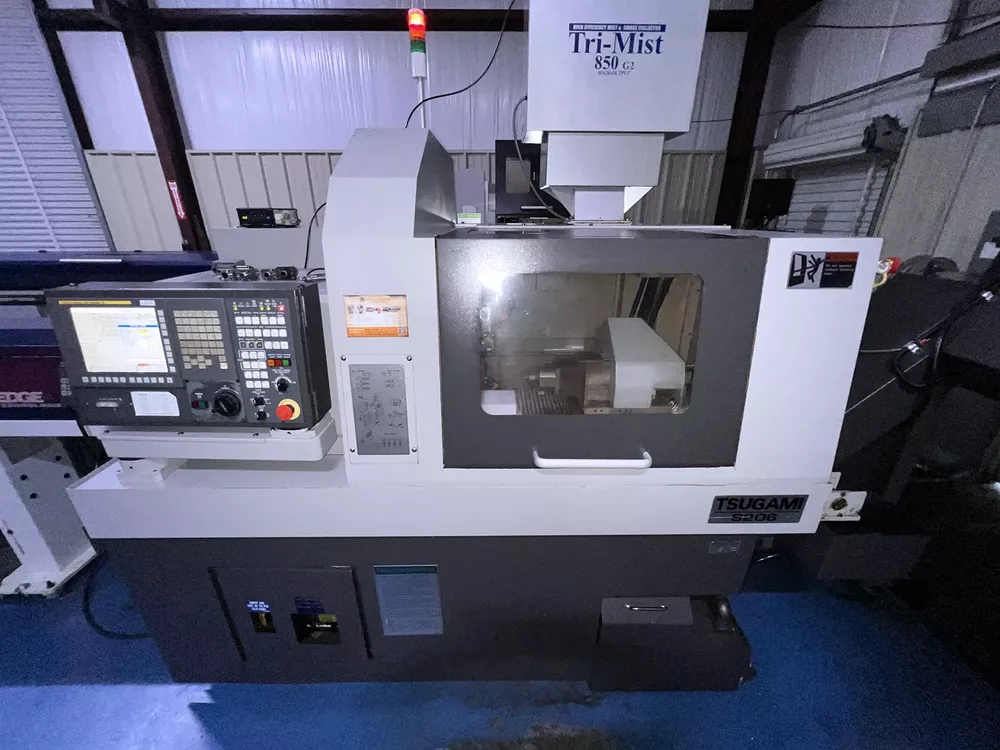

Tsugami Fanuc 32i-MB CNC Control 10000 RPM S206 8 Axis

Tsugami S206
2018

Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 9.843″ (250 mm)
Max Turning Length with Gripping Unit: 8.26″ (210 mm)
Max Bar Capacity: 0.79″ (20 mm)
Max Tool Positions: 25
Max Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max Main Spindle Tapping Diameter: M8
Max Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max Back Spindle Tapping Diameter: M6
Max Cross Drilling Diameter: 0.275″ (7 mm) ER11, 0.393″ (10 mm) ER16
Max Cross Tapping Diameter: M5 x 0.8
Max Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
Max Tool Spindle Drilling Diameter: 0.314″ (8 mm)
Max Back Tapping Diameter: M5

Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 10000 RPM
Back Spindle Motor: 3.7 kW
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 12000 RPM

Cross Turn Stations: 8
Cross Drill Stations: 3
Main/Sub Drill Stations: 5
Sub Drilling Stations: 4
Live Cross Mill Stations: 2
Live Sub Milling Stations: 4
Driven Tool Speed: 8000 RPM
Driven Tool Motor: 0.75 kW (Front Tool Post), 1 kW (Rear Tool Post)

Fanuc 32i-MB CNC Control
Controlled Axis: X1
Controlled Axis: X2
Controlled Axis: Y1
Controlled Axis: Y2
Controlled Axis: Z1
Controlled Axis: Z2

Edge Minuteman 320 SE Bar Feeder
Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Traverse: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Part Catcher
Coolant Tank
Chip Conveyor
Tri-Mist Collector
