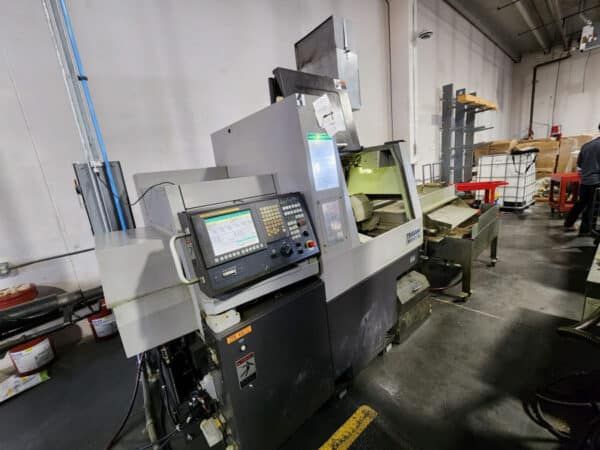

Tsugami Fanuc OI-TD Control 8000 RPM BO325II 6 Axis

X1, Y1, Z1, X2, Z2 Axis Travel
C Axis Optional
Fanuc OI-TD Control
Chucking Barstock Diameter 8–32 mm (0.31–1.25")
Max Machining Length 320 mm (12.59")
Max Drilling Diameter 12 mm (0.47")
Max Tapping Diameter M10
Max Back Spindle Chucking Diameter 32 mm (1.25")
Max Back Spindle Drilling Diameter 10 mm (0.39")
Max Back Spindle Tapping Diameter M8
Max Tool Spindle Drilling Diameter 8 mm (0.31")
Max Tool Spindle Tapping Diameter M6
Max Tool Spindle Slotting Diameter 45 mm (1.77")
Main Spindle Speed 200–8000 RPM
Back Spindle Speed 200–8000 RPM
Rapid Traverse Rate 32 m/min (X1, Y1, Y2 24 m/min)
Tool Storage Capacity 27/39
Stick Tool Size 16 x 16 x 100 mm
Live Cross Drills 4
OD Turning Tools 8
ID Tools (by sub spindle) 2
ID/BW Tools 5
BW Tools 4 Fixed
Main Spindle Power 3.7 / 5.5 kW
Back Spindle Power 2.2 / 3.7 kW
Tool Spindle Power 1.0 kW
Rotary Guide Bushing 1.5 / 3.0 kW
X1 Motor 0.5 kW
Y1, Z1, X2, Z2 Motor 0.75 kW
Coolant Pump 400 W
Lubricating Pump 3 W
Edge Patriot 338 Magazine Barloader, 12' bar length capacity
MP Systems V2 High Pressure Coolant System
TriMist 850 G2 Mist Collection System
LNS Turbo Chip Conveyor
Long Parts Attachment
Machine Dimensions 104.5" x 57" x 77"
Machine Weight 7,500 lbs
Power Requirements 21.4 KVA
Air Requirements 0.4 MPa or Above
Air Discharge Rate 40 NL/min
Coolant Tank Capacity 180 L (47.5 gal)
Machine Ran C360 Brass & C230 Red Brass
Only Oil Ran
XTREME CUT 757
Power On Hours 40,383
Operating Time Approx. 22,500 hrs
