Tsugami FANUC series 32i-B 10000 B0206E-II 6

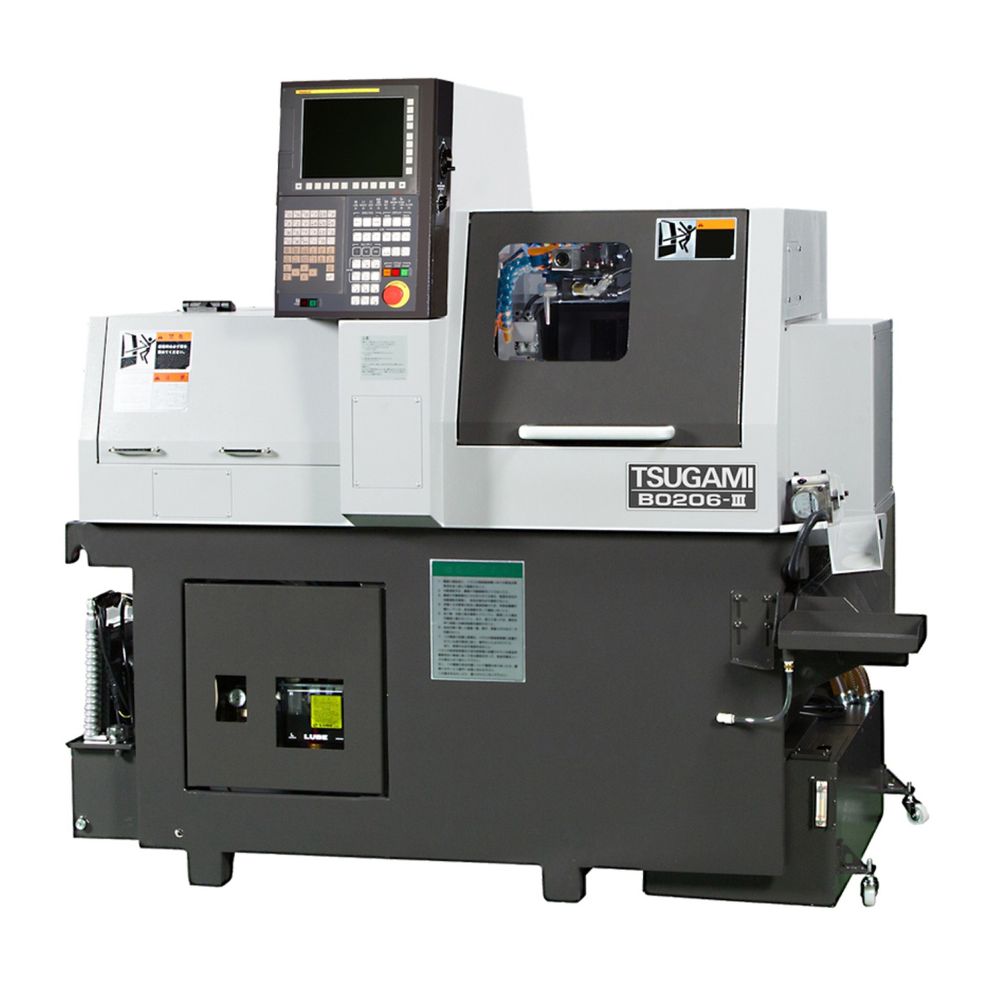

Swiss-type CNC Lathe TSUGAMI B0206E-II



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2014
CNC control: FANUC series 32i-B
Number of axes: 6
Rapid traverse rate X1 axis: 24000 [mm/min]
Rapid traverse rate X2 axis: 24000 [mm/min]
Rapid traverse rate Z1 axis: 32000 [mm/min]
Rapid traverse rate Z2 axis: 32000 [mm/min]
Rapid traverse rate Y1 axis: 15000 [mm/min]
Rapid traverse rate Y2 axis:15000 [mm/min]
Max. bar diameter: 20 [mm]
Min. spindle speed: 200 [rpm]
Max. spindle speed: 10000 [rpm]
Increment C-axis: 0.001 [°]
Spindle power: 3.7 [kW]
Min. counter spindle spindle speed: 200 [rpm]
Max. counter spindle speed: 12000 [rpm]
Counter spindle increment C-axis: 0.001 [°]
Counter spindle power: 2.2 [kW]
Number of positions end attachment: 8
Number of positions guide bush holder 1: 5
Number of motorized positions guide bush holder 1: 3
Live tools speed guide bush holder 1: 8000 [rpm]
Number of positions secondary operation: 8
Number of motorized positions secondary operation: 4
Live tools speed secondary operation: 8000 [rpm]
Max. tool holder cross-section: 12 x 12 [mm]
Working hours: 9132 [h]
Weight: 1750 [Kg]


EQUIPMENT INCLUDED:

x7 live tool holders
x1 rotary guide bush
x1 parts catcher
x1 parts conveyor belt
x1 parts ejection device
x1 chip conveyor
x1 coolant tank
x1 IEMCA ELITE 220 E / 32 XL bar feeder
x1 fire protection system - to be inspected by the buyer through a certified organization
x1 electrical transformer
x1 3-color status light



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.
