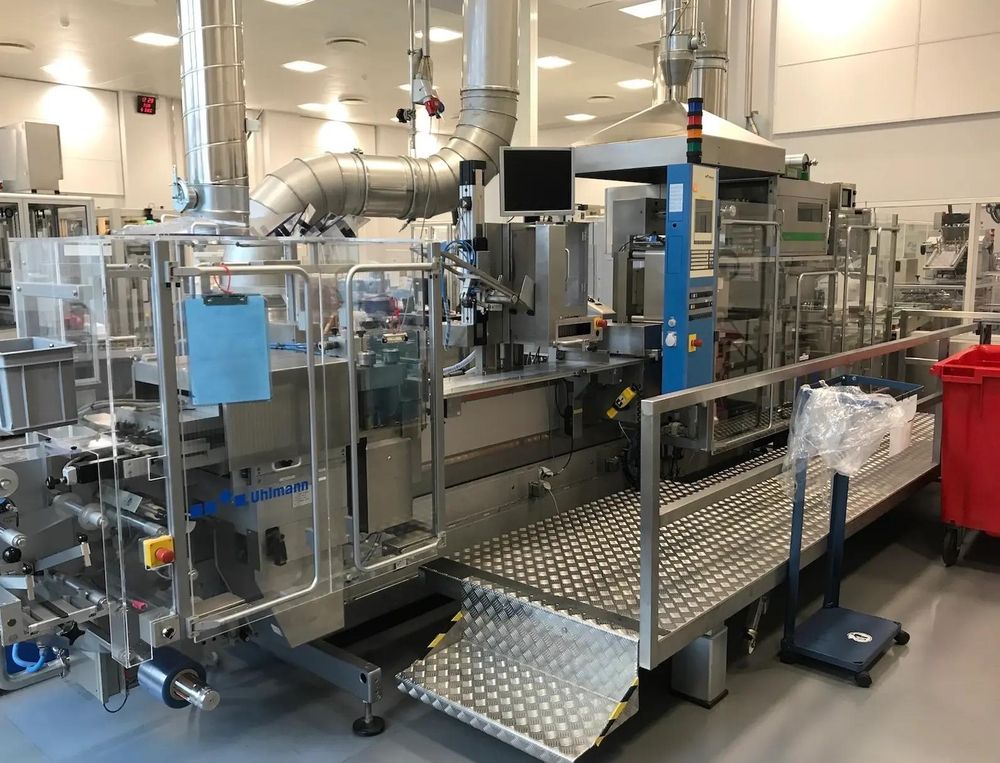

UHLMANN UPS4 ETX + P100 + PAK 300, Blister Line

Composed of
1) UHLMANN BLISTER MACHINE, MODEL UPS4-EXT
Intermittent motion packing machine for blisters.
For filling blisters with tablets, capsules and dragees.

MACHINE CHARACTERISTICS
Processable forming films materials: PVC, PVC/PVDC,
PVC/Aclar, PP, PS, PET
Processable lid foils materials: Aluminium hard,
aluminium soft, Paper, Paper/AL, Polyester/PE, Polyester/AL, PVC

PRODUCTION CHARACTERISTICS
Single-stroke index: min. 62 mm, max. 272 mm
Forming depth (PVC): 12 mm, 28 mm, 35 mm
Blister format: Min: 60 mm; Max: 140 mm x 39 mm
Punching area: Length 272 mm; Width 284 mm

Forming film width: min. 100 mm, max. 298 mm
Reel diameter: max. 400 mm(unwind shaft), max. 800 mm (reel support)
Core diameter: 76 mm

Lid foil width: min. 100 mm, max. 298 mm
Reel diameter: max. 300 mm (unwind shaft), max. 460 mm (paper lidding material)
Core diameter: 76 mm

2) ROMACO PROMATIC CARTONER, MODEL P100
Year of construction: 2001
Horizontal intermittent motion cartoning machine.

MACHINE CHARACTERISTICS
Adjustable Infeed Bucket System
Automatic Blister Feeding Magazine
Set for Tuck Closure Cartons
Automatic GUK Leaflet Inserter
Carton Coding Unit
Laetus Argus Pharma Code Reading System

PRODUCTION CHARACTERISTICS
Carton range: Width 20 to 100 mm; Depth 15 to 60 mm; Length 60 to 150 mm; A + B Max 160 mm
Max Speed: 100 Cartons/Min

3) ROMACO PROMATIC PACKER, MODEL PAK 300
Designed for packing cartons and/or bundles into RSC cases. With a high-capacity case magazine fitted with automatic lifting of the case to working height.

MACHINE CHARACTERISTICS
GMP design
Ergonomic design
Machines error diagnosis and troubleshooting functions enhance operation of the machine
Quick and easy changeover

PRODUCTION CHARACTERISTICS
Carton size range (mm): (A) min. 20, max. 150; (B) min. 15, max. 85; (C) min. 60, max. 210
Case size range (mm): (a3) min. 180, max. 500; (b3) min. 120, max. 350; (c3) min. 120, max. 350

ENERGY CONSUMPTION
Power consumption, in kW: 4
Air consumption, in Nl/min: 250

DIMENSIONS
Weight: 1,800 kg (approx)
Size: 4,350 x 1,850 x 1,715 mm (approx)
