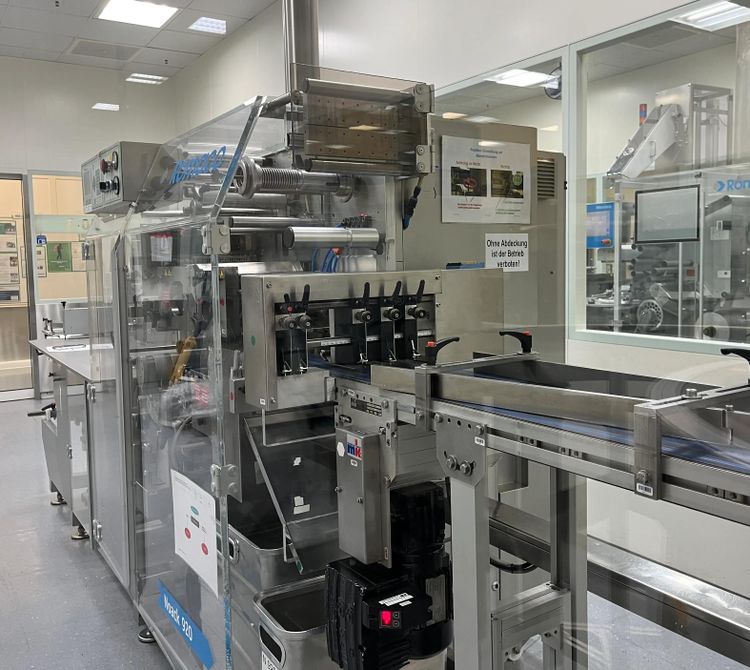

Romaco N920 + C150 + PEWOPACK250 + CT2000, Blister Line

ROMACO NOACK BLISTER LINE

composed of
1) ROMACO NOACK PACKAGING MACHINE, MODEL N 920
Year of construction: 2010
Rotary blister packaging machine. With a 360° sealer. Fully cGMP compliant.

XML control with touchscreen control panel
With QuickFeed
Balcony design
Easy integration of online printing and security systems

PRODUCTION CHARACTERISTICS
Output: up to 500 blisters/min
Max film width: 210 mm
Max forming depth: 12 mm
Max forming cycles: 100/min
Max film forming roller diameter: 700 mm
Max diameter of coating film roll: 280 mm

2) UHLMANN CARTONER, MODEL C150
Year of construction: 2004
Intermittent motion cartoner for small and medium batches of blisters.

PRODUCTION CHARACTERISTICS
Output: 150 cartons/min (max)
Maximum carton dimensions: 100 x 85 x 150 mm

Maximum number of blisters: 10
Maximum height of blister stack: 80 mm
Closure types: Interlocking and hot-melt glue

Application area: Blister
Type of operation: intermittent
Pitch: 5''

3) PESTER PACKAGING MACHINE, MODEL PEWO PACK 250:
Year of construction: 2000
Automatic packaging machine.

PRODUCTION CHARACTERISTICS
Output: up to 80 packs/min
Pack dimensions: 60 x 30 x 60 mm (min); 360 x 180 x 250 mm (max)
Film width: min.: 50 mm - max.: 250 mm
Film thickness: min.: 25 μm - max.: 100 μm
Roll diameter: max.: 300 mm

ENERGY CONSUMPTION
Power supply: 3x400V + N + PE / 50Hz
Operating pressure: 5 bar
Usable film: PE material

4) SEALING MACHINE, MODEL T-4000
For top and bottom welding. With automatic tilting of tabs. Can be adapted very easily to the current box dimensions. Adjustment can be made from both sides.
Power control with SOCO SYSTEM controller
Simple and cost-effective maintenance
Wide range of accessories, e.g. wheels with brakes, packing tables and conveyor belts

5) CHRIST STRIP COLLECTION TABLE, MODEL CT2000
Year of construction: 2009
Fully automatic strip collection table for temporary storage of products.
Easy-to-clean stainless steel casing
Ergonomic design with ample space for the operator's feet and knees
Compact, high quality balcony design
Automatic recognition of a full table and stop of upstream machines

ENERGY CONSUMPTION
Operating voltage: 1x230 V; 50 Hz
Control voltage: DC 24 V
