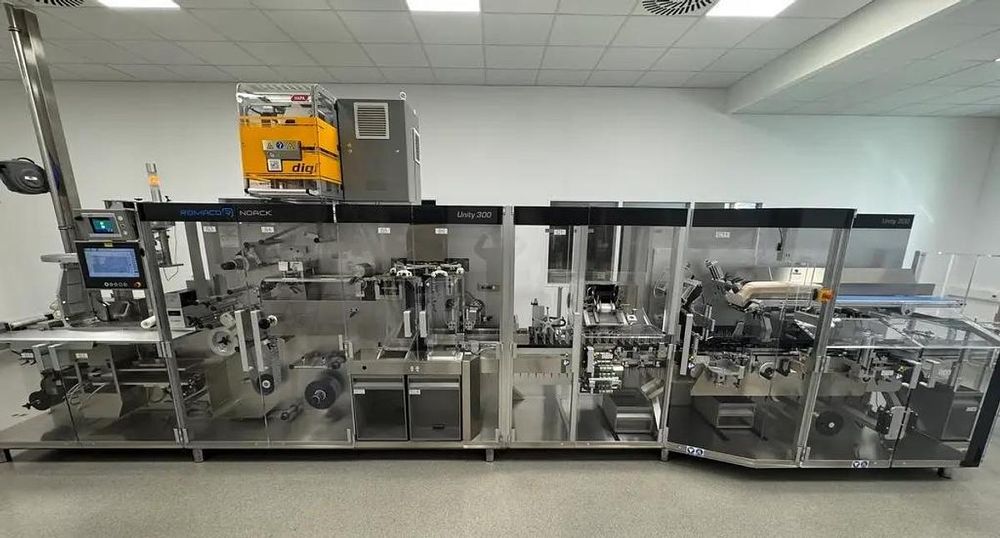

Noack, Romaco UNITY 300, Blister Packaging Line

MACHINE CHARACTERISTICS
Blister tracks: 1 (max)
Remote Assist connection Ethernet
PDA interface OPC UA

PRODUCTION CHARACTERISTICS
Output blisters/minute: 300 max.
Output cartons/minute: 10 – 300 (min-max)
Forming cycles/minute: 100 max.
Die-cutting cycles/minute: 300 max.

Foil width max: 165 mm
Forming area max: 190 × 150 mm
Die-cutting area max: 100 × 150 mm
Forming depth max: 12 mm
Forming material reel diameter max: 700 mm
Lidding foil reel diameter max: 300 mm
Carton dimensions (A × B × C): 35 × 15 × 65 to 105 × 100 × 160 mm (min-max)

DIMENSIONS
Machine dimensions (L × W × H): 8,270 × 1,890 × 2,230 mm
Weight (approx): 5,300 kg
