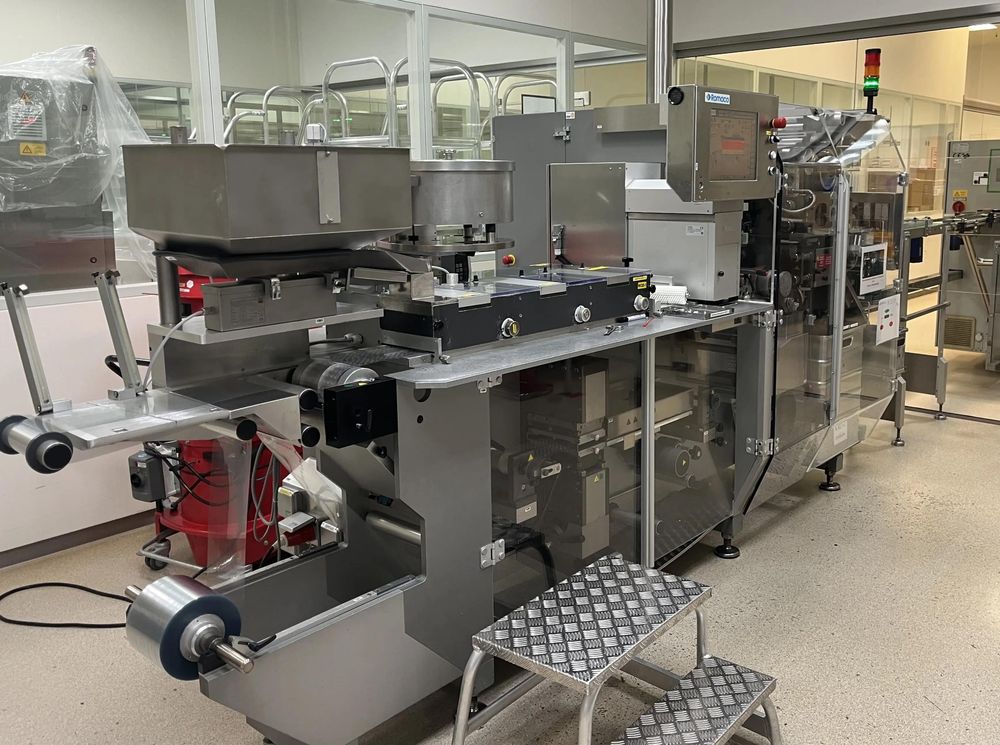

Noack, Romaco N921 + C150 + CT2000, Blister Line

Composed of
1) BLISTER PACKER ROMACO NOACK, MODEL N921
Year of construction: 2006
Rotary machine for blister packaging. Best format changeover times in the industry without tools. cGMP compliant.

PRODUCTION CHARACTERISTICS
Output: up to 500 blisters/minute
Applications: Tablets; Capsules; Soft gel. Child/elderly-proof packaging; Cold aluminum; Multi-layer coating materials
Max. sheet width: 210 mm
Max. forming cycles: 100/min
Max. forming depth: 12 mm
Max. sheet forming reel diameter: 700 mm
Max. sheet coating reel diameter: 280 mm

2) UHLMANN CARTONER, MODEL C150
Year of construction: 2004
Intermittent motion cartoner. For small and medium-sized blister packs.

PRODUCTION CHARACTERISTICS
Output: 150 cartons/min (max)
Application area: blister packs
Maximum carton dimensions: 100 x 85 x 150 mm
Maximum number of blister packs: 10
Pitch: 5"
Maximum blister stack height: 80 mm
Closures: interlocking and heat-sealed

3) CHRIST COLLECTION TABLE, MODEL CT2000
Year of construction: 2009
Compact, high-quality collection table with balcony structure. Automatic detects a full table, and shuts down upstream machines.

ENERGY CONSUMPTION
Operating voltage: 1x230 V 50 Hz
Control voltage: 24 V DC
