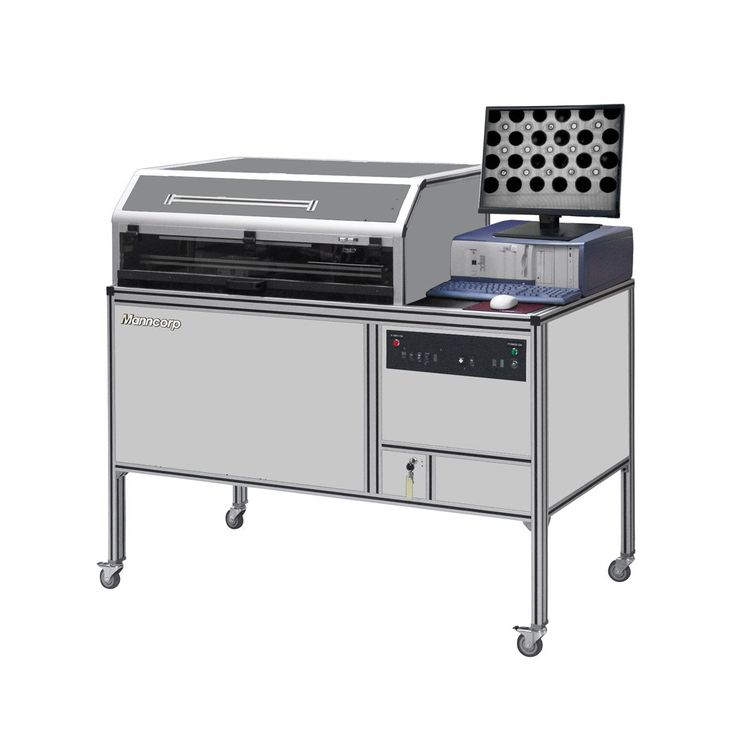

Manncorp MX1

Spatial Resolution
20 line-pairs/mm (standard)
100 line-pairs/mm (w/ optional 10 μm x-ray source)
Anode Voltage
80kV
Anode Current
150 microamps (internal adjustment)
Focal Spot Size
35 μm (standard)
10 μm (optional)
Focal Spot to Image Plane Distance
4-6" (101.6 mm - 152.4 mm)
XRTV Zoom Camera
4X-50X magnification (standard)
up to 225X (optional)
X-Y Positioner Range
14" x 14" (356 mm x 356 mm)
Operating Voltage
120v/220v, 50-60hz
Dimensions
50"H x 60"W x 33"D (1270mm x 1524mm x 838.2mm)
