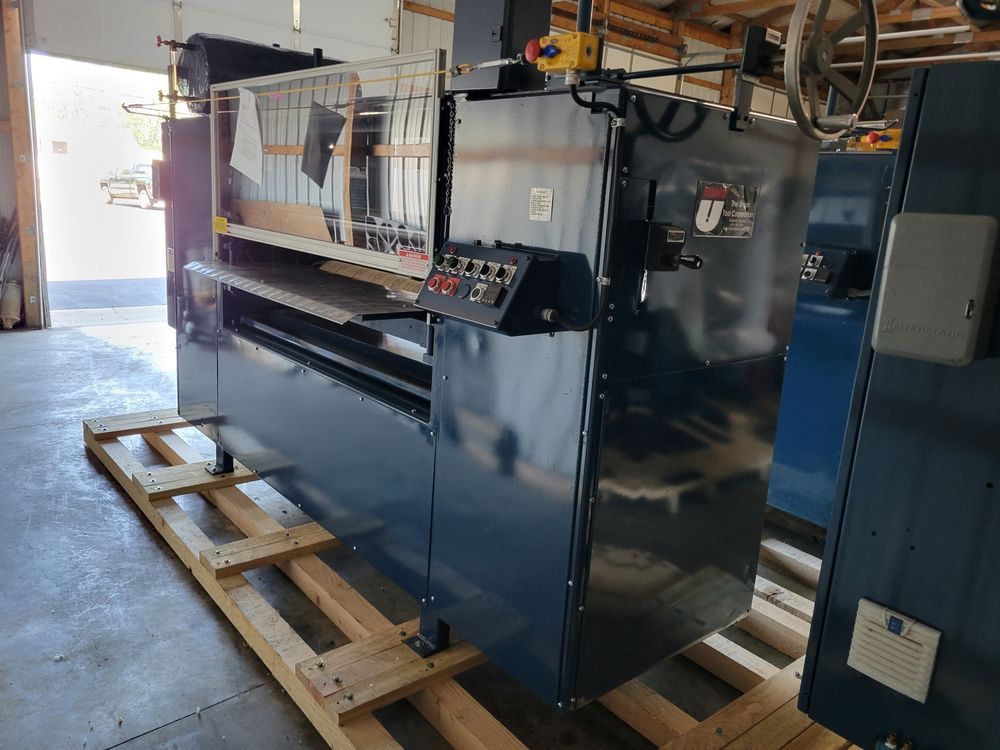

Union Series #15, 54" Wide Hot Melt Roller Coater Machine
This machine is capable of applying hot melt adhesives and/or coatings to the top side only of flat rigid substrate materials.
This size machine will accommodate a panel up to 48” wide.
The sheet thickness can range from 0"- 4"-.
Variable speed provided on this machine can run up to a max 60LFPM.
This Hot Melt Roller Coater would be equipped with the following:
One (1) 6-1/2” diameter x 54” long, smooth ground silicone rubber coating roll (heated)
One (1) 4-7/8” diameter x 54” long, smooth ground steel doctor roll (heated)
One (1) 6-1/2” diameter x 52” long, smooth ground steel back up roll (non-heated)
Standard Mechanical Single Handwheel Control with Mechanical Digital Indicator
Rotary Unions & Oil Pump
Safety Guards & Covers
Magnetic safety interlock control with perimeter E-stop cable
Hot Oil Flow Through Recirculation System
Complete disconnect and push button box wired for 480V, 3 Phase, 24V controls
AnitFriction, Self-Aligning Bearings
AC Variable Speed
Automatic programmable 7-Day start timer
Infeed & outfeed support table
