Venjakob VEN SPRAY DUO C/ CNC 6000

Spraying machine with belt cleaning at the machine's outfeed under a folding table with belt transport.
In 2021, the PLC control, the touchscreen control, and the frequency converter for the gun drive were renewed.

- Retrofit 2026 (Year of manufacture 2002)
- Working width 1,300 mm
- Operator side right
- Price for overhauled machine
- Current condition, in overhaul phase
- Dual-action spray gun drive
- Dry extraction
- Exhaust air capacity 10,000 m³/h
- Extraction port diameter 500 mm
- Belt conveyor system
- Feed speed approx. 5 and 14 m/min
- With belt cleaning system
- With paint recovery via V-belt system
- Spray gun control, touch screen
- Installed paint circuits: 1 pc.

- 4 Airless spray guns, Krautzberger KAA1300
- 1 HD airless pump
- Supply air filter ceiling
- Suitable for water-based paints
- Suitable for solvent-based paints
- Control cabinet integrated into the machine.

- Total connected load ~ 19kW
- Length: 6,485mm
- Width: 3,690mm
- Height: 2,497mm
- Voltage, Hz: 400/50
- Color: Light gray 7035 + black
- Voltage fluctuations max. +/- 5%

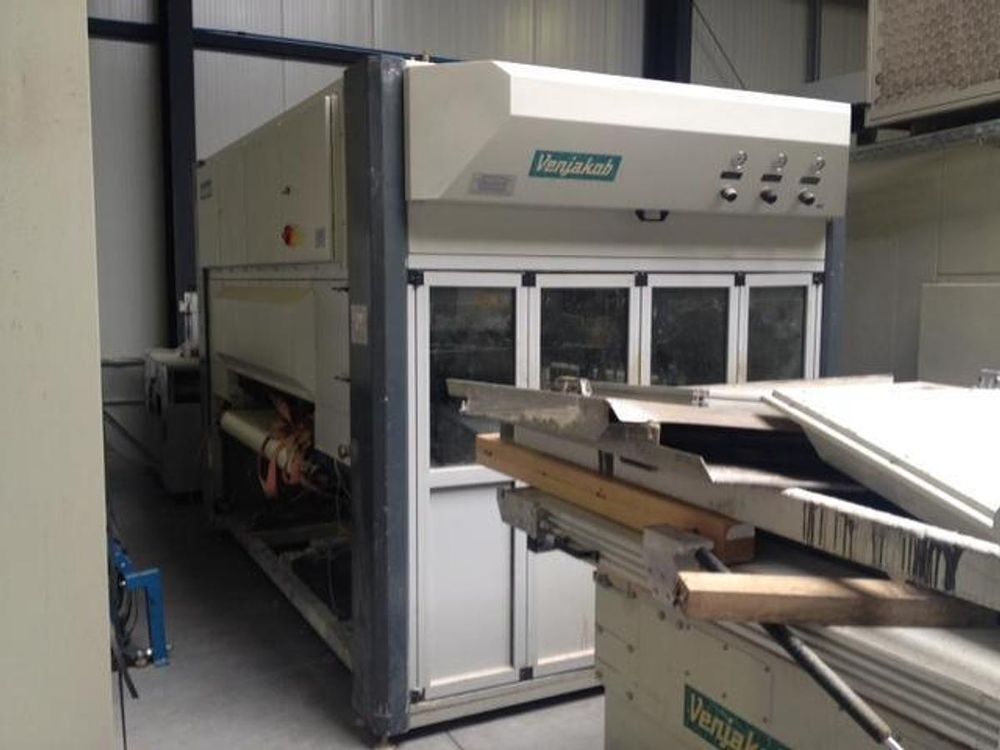

The images are examples of an unrestored spraying machine of the same type.
