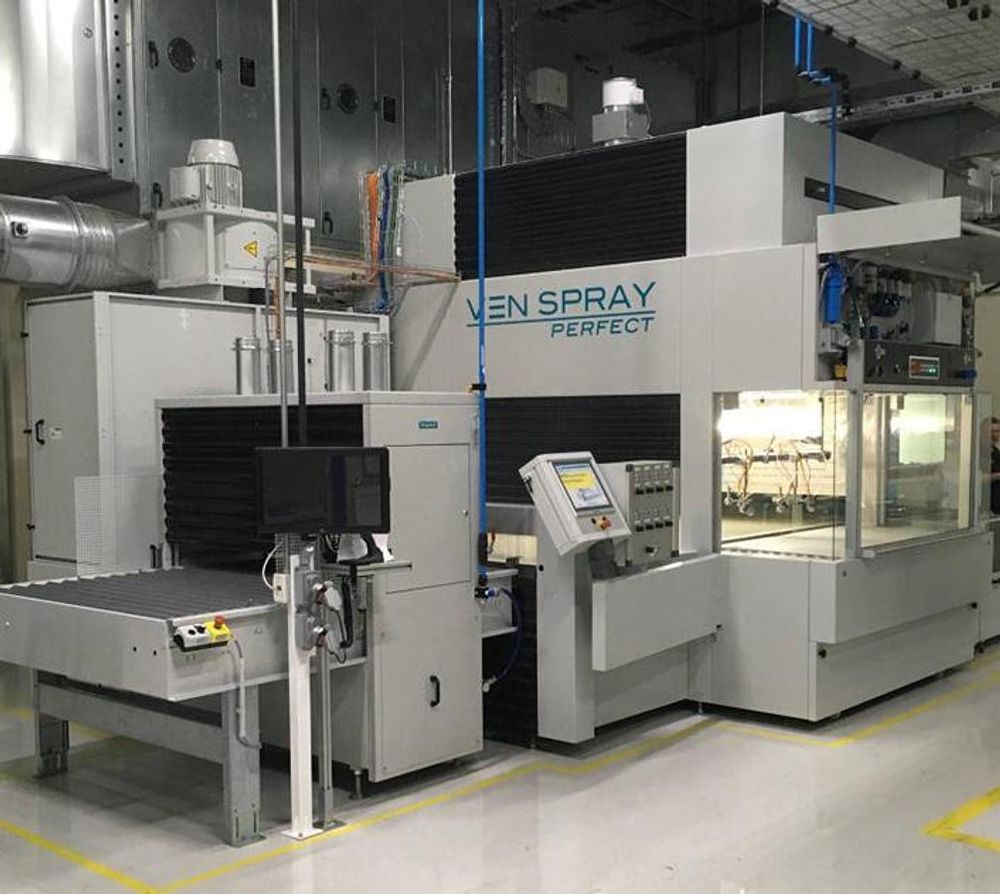

Venjakob VEN SPRAY Perfect WW

Technical data:
- Spray robot VEN SPRAY PERFECT
- Working width: 1,300 mm
- Working height: 940 mm ±20 mm
- Part detection via light curtain
- CNC 7000 control
- Operating side on the right
- Gun drive in Duo design Z16
- Water-sprinkled exhaust extraction system
- Exhaust extraction system in stainless steel housing
- Diameter of exhaust nozzle 500 mm
- Exhaust air capacity 10,000 m³/h
- Paint recovery system via V-band
- Feed speed continuously adjustable 3 - 9 m/min
- Installed spray circuits 2 pcs
- Gun arm quick-change system, 2 pcs
- Number of installed spray devices 4+4 pcs
- Number of material pumps 2 pcs
- Intake air filter cover G5
- Length ~ 6,590 mm
- Width 3,666 mm (+1,152 mm)
- Height 2,500 mm
- Total connection 22 kW
- Voltage, Hz 400 / 50
- Color RAL 7035
- Voltage fluctuations max. ±5 %
