Venjakob VEN SPRAY Duo/C

Spray machine with new ASCOM gun control,
PLC, light curtain and touch panel, mounted at the inlet of the spraying machine.

- Retrofit 2026 (Year of manufacture 2000)
- Working width 1300 mm
- Operator side right
- Price for overhauled machine
- Current condition, in overhaul phase
- Dual-action spray gun drive
- Dry extraction
- Exhaust air capacity 10,000 m³/h
- Extraction port diameter 500 mm
- Belt conveyor system
- Feed speed approx. 5 and 14 m/min
- With belt cleaning system
- With paint recovery via V-belt system
- Spray gun control, touch screen
- Installed paint circuits: 1 pc.

- 4 Airless spray guns, Krautzberger KAA1300
- 1 HD airless pump
- Supply air filter ceiling
- Suitable for water-based paints
- Suitable for solvent-based paints
- Control cabinet integrated into the machine.

- Total connected load ~ 19kW
- Length: 6,485mm
- Width: 3,690mm
- Height: 2,497mm
- Voltage, Hz: 400/50
- Color: Light gray 7035 + black

- Voltage fluctuations max. +/- 5%

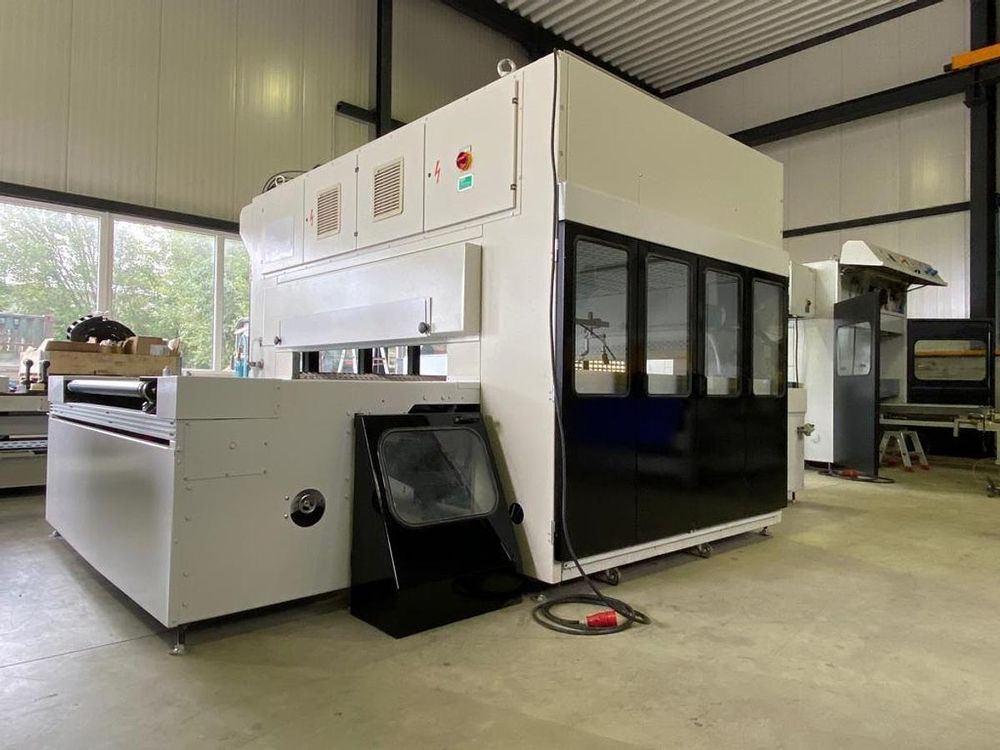

The images show only an example of a refurbished spraying machine.
