Venjakob VEN SPRAY Comfort CNC 7000

Pos.1
VEN CLEAN Smart Dust removal
Compressed air dust removal for cleaning the parts to be painted of dust on profiled workpiece surfaces.
There are five rotating blast nozzles installed.
These remove the dust from the surface.
The dissolved dust is sucked away on both sides by suction slots
.at the same time. An external exhaust is required on the customer side.

Technical data:
Length: 2,060 mm
Roll spacing: 85 mm
Working width: 1,300 mm
Total width: 1,800 mm
Drive power: 0.25 kW
Exhaust air volume: 4,000 m³/h
To be provided by customer side
Compressed air consumption: 980 Nl/min.
Ionization as needle bar, not EX) with
Compressed air nozzles,
Compressed air consumption 840 L/min.

Pos. 2

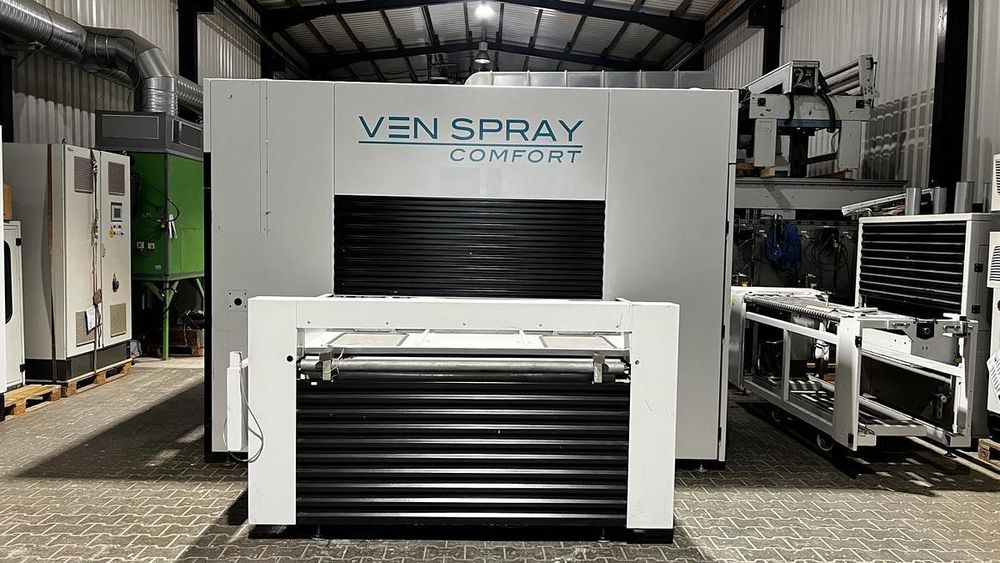

Spritzautomat VEN SPRAY Comfort
- Manufacturer Venjakob
- Type. VEN SPRAY Comfort CNC 7000
- Year of manufacture 2017
- Length: 4,350 mm
- Working height approx. 930 mm +-20 mm
- Working width 1,300 mm
- Operation side left
- Price for refurbished machine
- Actual condition, machine not refurbished
- Gun drive in duo configuration
- Dry suction
- Diameter of suction connector 500 mm
- Exhaust air capacity 7,000 m³/h
- Belt transport system
- Feed rate continuously adjustable ~ 2-6 m/min
- With belt cleaning system with scraper in tungsten carbide version
A complete pre-installation for retrofitting a second washer is available here.
- Gun control, Touch Screen CNC7000
- Installed color circuits 1 pc (optional more possible)
- Intake air filter cover
- Suitable for water-based varnishes
- Suitable for solvent-based varnishes
- Length: 4,350 mm+(2,060 mm)
- Width: 3,540 mm
- Height: 2,600+440 mm
- Control cabinet, freestanding
- Voltage, Hz 400 / 50
- Color RAL 7035
- Voltage fluctuations max. +/- 5 %
