Venjakob VEN SPRAY HGS-DUO-Z

Spray machine In 2019, the PLC control, the touchscreen control, and the frequency converter for the pistol drive were renewed.
- Retrofit 2026 (Base machine year of manufacture 2000)
- Working width 1300 mm
- Spray booth width and length 2400 mm instead of 2166 mm
- Operator side on the right
- With dust extraction at the machine inlet
- Price for overhauled machine
- Current condition, in the overhaul phase
- Dual-action spray gun drive
- Dry extraction
- Exhaust air capacity 7000 m³/h
- Extraction port diameter 500 mm
- Belt conveyor system
- Feed speed 3-10 m/min
- With belt cleaning system
- With paint recovery via V-belt system
- 1 installed paint circuit
- 4 Airless spray guns,

Krautzberger KAA1300
- 1 high-pressure airless pump
- Supply air filter ceiling
- Suitable for Water-based paints

- Suitable for solvent-based paints
- Total connected load ~ 15kW
- Length: 6,300mm
- Width: 3,550mm
- Height: 2,540mm
- Voltage, Hz: 400/50
- Color: RAL 7035 light gray/black
- Voltage fluctuations max. +/- 5%

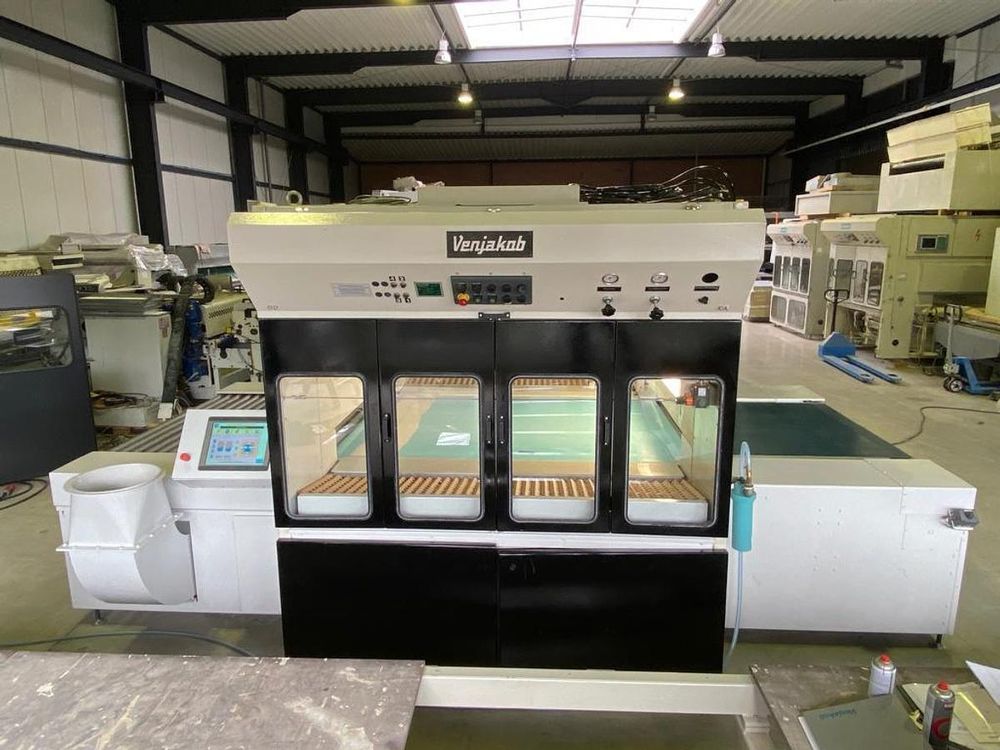

The image shows only an example of a refurbished spray booth.
