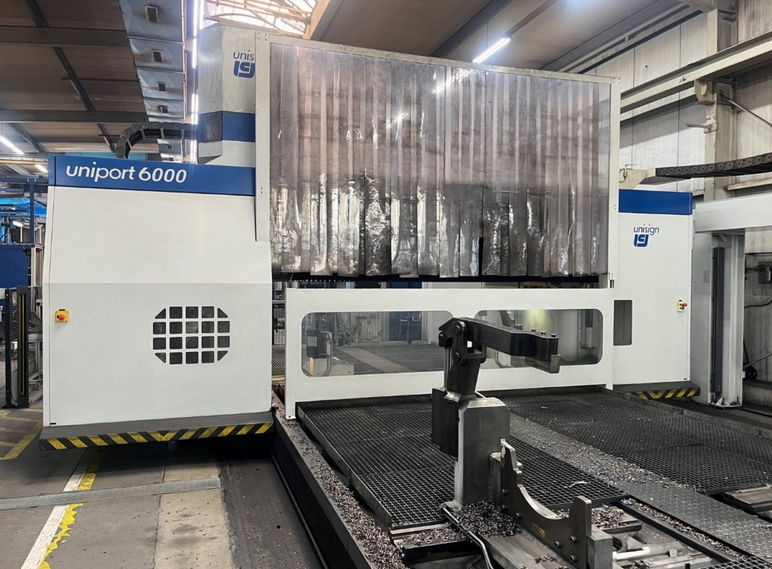

Unisign Uniport 6000 Variable Speed 120 mm

Gantry-style milling machine with movable portal bridge and stationary clamping table
Clamping table with transverse clamping beams spaced 750 mm apart
Hydraulic clamping device with clamping bridges for axis machining
Angle drilling and milling head, n = 4000 rpm, SK50
High accuracy and stability via Hirth gearing
Automatic tool change in the angle head
RWP20.50-M touch probe
Pendulum operation
Safety fence with light curtains (Sick)
30-position tool chain magazine on gantry frame
Machine cooling system
Integrated water-to-air heat exchanger in control cabinet
Remote diagnostics for Siemens Sinumerik 840 D
Makrolon curtains on both sides of gantry bridge with motorized height adjustment
Partition wall with viewing window
Chip conveyor with hinged belt design
Mounting and alignment elements
Documentation included
Spare SK50 angle drill and milling head
Spare Hexagon RWP 20.50-M touch probe
2500 x 1200 mm T-slot clamping frame (can replace hydraulic device)
Various spare parts

X-axis travel 10000 mm
Y-axis travel 1500 mm
Z-axis travel 1000 mm
Passage height 1300 mm
Passage width 1500 mm
Control Siemens Sinumerik 840 D
Turning speeds 2 steps: 6000 U/min
Tool taper SK50
Boring capacity 120 mm
Thread capacity M55
Toolpiece magazine: chain magazine 30 pieces
Rapid traverse X-axis 36000 mm/min
Rapid traverse Y-axis 30000 mm/min
Rapid traverse Z-axis 30000 mm/min
Total power requirement 36 kW
Machine dimensions approx. 12 x 11 m
Machine weight approx. t
