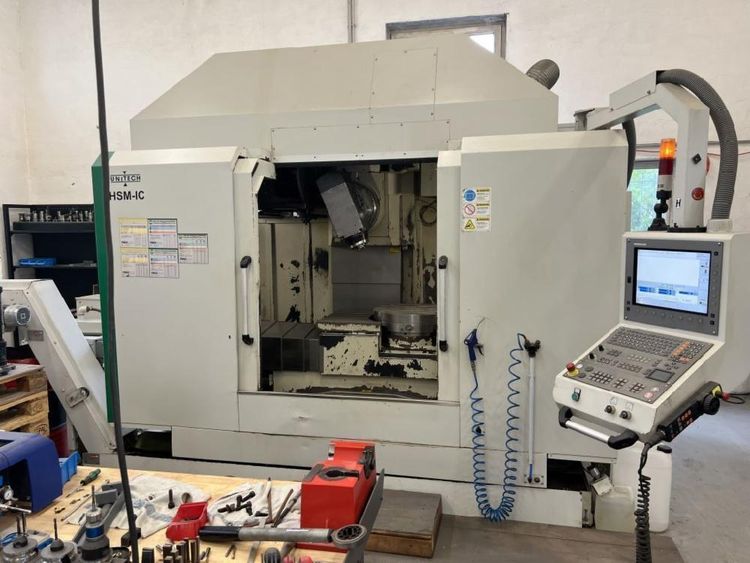

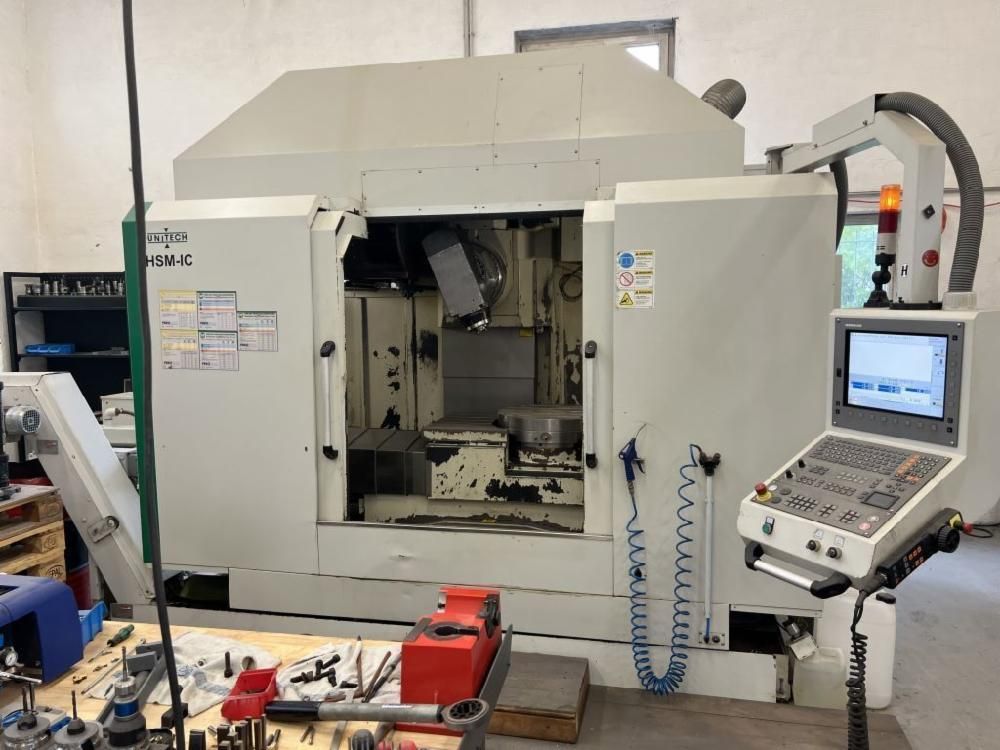

Unitech HSM – IC 5 ACHS 5 Axis

Heidenhain iTNC 530
chip conveyor
through-spindle air
glass scales in X and Y axis
zero-point measuring system in rotary table
infrared measuring system
zero-point clamping system in rotary table with 10 clamping pots (Schunk)

axis travel X: 1080 mm
axis travel Y: 610 mm
axis travel Z: 810 mm
rotary table diameter: 600 mm
spindle speed: up to 15000 rpm
feedrate: up to 30000 mm/min
table size: 1100 x 600 mm
table load capacity: 500 kg
tool holder: BT 40
tool magazine: 40 stations
coolant through spindle: 60 bar
spindle hours: 8200 h (spindle overhauled in 2025 → 0 h)
weight: 10 t
