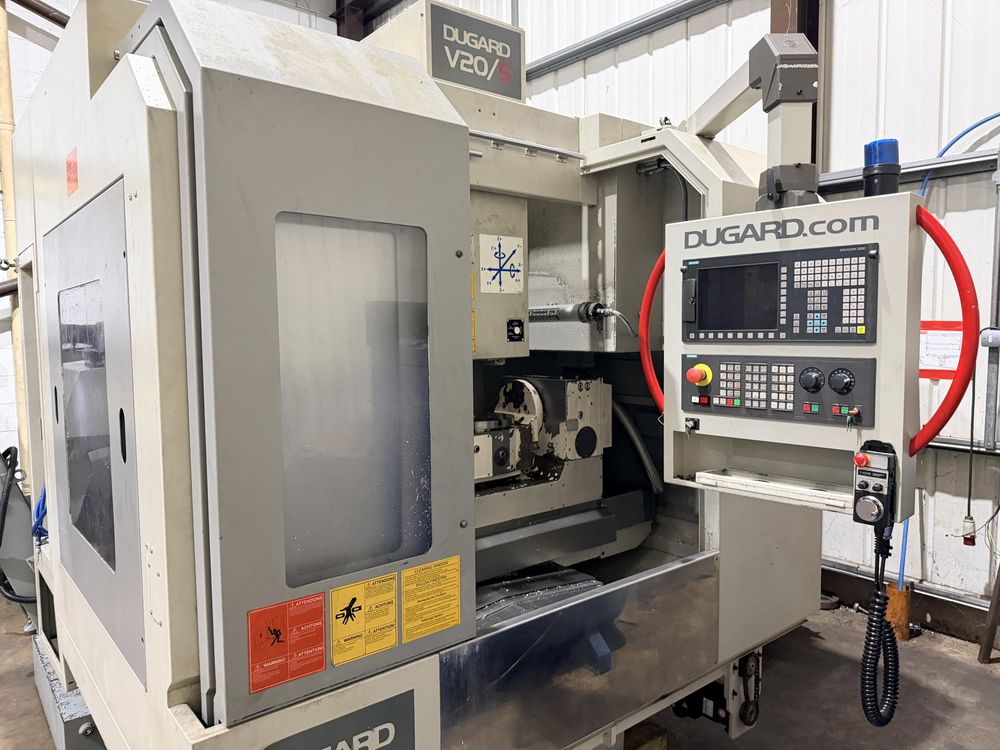

Dugard V20-5 5 Axis
Ref :
2760729-3-GO
Condition :
Used
Manufacturer :
Dugard
Model :
V20-5
Nb Of Axis :
5 Axis
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X axis travel: 400mm
Y axis travel: 560mm
Z axis travel: 400mm
Rapid feedrate: 48m/min
A axis: +120/-30 degrees
C axis: 360 degrees
Siemens 828 control
Coolant
Interlocked guards
Low volt light
Remote hand wheel
Swarf conveyor
5-axis
Spindle speed: 12000rpm
Tool size: BT40
Maximum tool diameter: 80mm
Maximum tool diameter with empty adjacent pockets: 130mm
Maximum tool length: 245mm
Maximum tool weight: 8kg
Tool change capacity: 24 stations
Maximum workpiece weight: 100kg
Min–max height under spindle: 100–500mm
Machine dimensions: 3110 × 2990 × 2960mm
Machine weight: 5000kg
