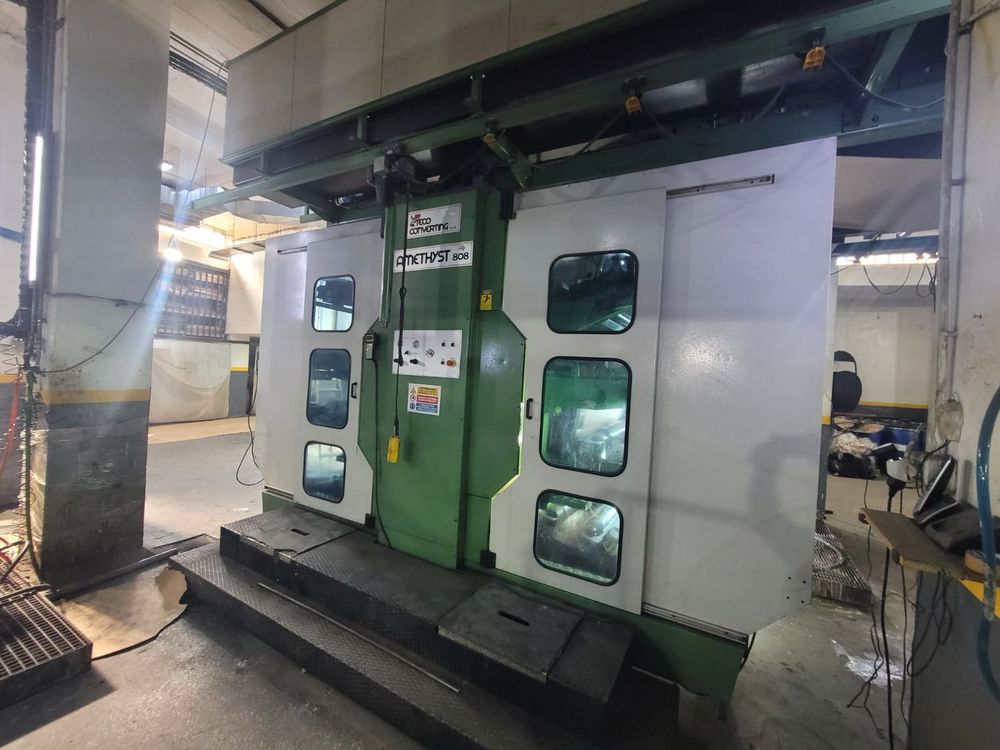

Uteco Amethyst 140 8 1400 mm

Central drum
8 colors (7 colors currently working)
With gears (not gearless)
Web width: 1450 mm
Printing width: 1400 mm
Min – max print repeat: 400 – 800 mm
Single unwinder, max reel diameter: 1250 mm
Single rewinder, max reel diameter: 1250 mm
2 drying zones (CI and tunnel) with independent control
Video camera: Selectra
Web guides: yes, before winding
Fast sleeve change: yes
Computer supervision: yes
Aniloxes: 2 x 60 lines/cm-Vol 20 cm3/m2; 3 x 80 l/cm-vol 18; 2 x 100 l/cm-vol 18; 4 x 100 l/cm-vol 15; 2 x 120 l/cm-vol 12,5; 4 x 220 l/cm-vol 8; 4 x 320 l/cm-vol 5,2
Sleeves: 11 x 40, 7 x 45, 12 x 50, 4 x 52, 12 x 55, 7 x 60, 7 x 65, 8 x 70 cm
Gears: 8 x 40, 8 x 45, 8 x 50, 4 x 52, 8 x 55, 8 x 60, 8 x 65, 8 x 70 cm
In line slitting system 2 knives with suction – termoregulation for CI drum
Dimensions H x L: 5250 x 14200 mm
Visible in production
Immediately available
