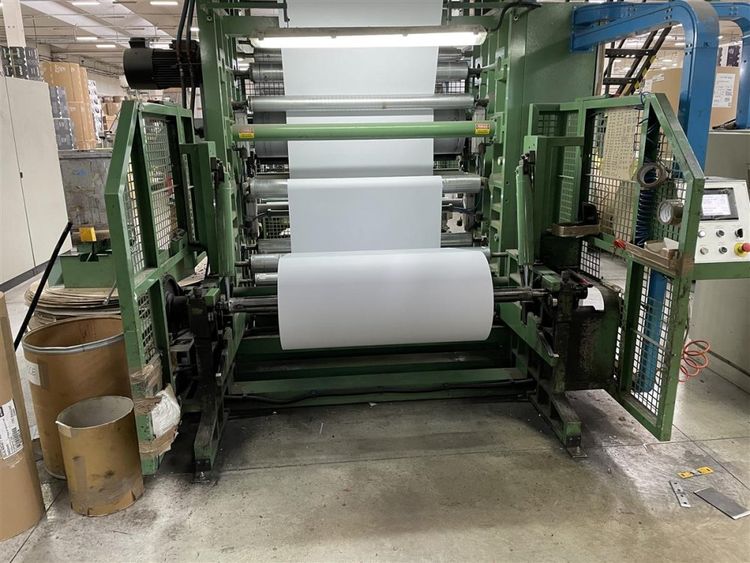

Uteco AMETHYST 8 1400 mm

Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type SINGLE
Max reel diameter unwinder (mm) 1250
Rewinder type SINGLE
Max reel diameter rewinder (mm) 1250
Drying 2 zones (CI unit and tunnel) with independent control, 4 motors per deck positioning
Videocamera Selectra
Web guides Yes, before winding
Anilox 2x 60 linee cm/ 20 cm³/m²; 3x 80 linee cm/ 18 cm³/m²; 2x 100 linee cm/ 18 cm³/m²; 4x 100 lines/ cm -15 cm³/m² ;
2x 120 lines/ cm -12.5 cm³/m² ; 4x 220 lines/ cm -8 cm³/m² ; 4x 320 lines/ cm 5.2 cm³/m²
Print Sleeves Sleeves: 11x40cm; 7x45cm; 12x50cm; 4x52cm; 12x55cm; 7x60cm; 7x65cm; 8x70cm
Gears: 8x 40 – 45 – 50 –55 – 60 – 65 – 70 cm + 4x 52cm
In line slitting system 2 knives with suction
Thermoregulation for CI drum
