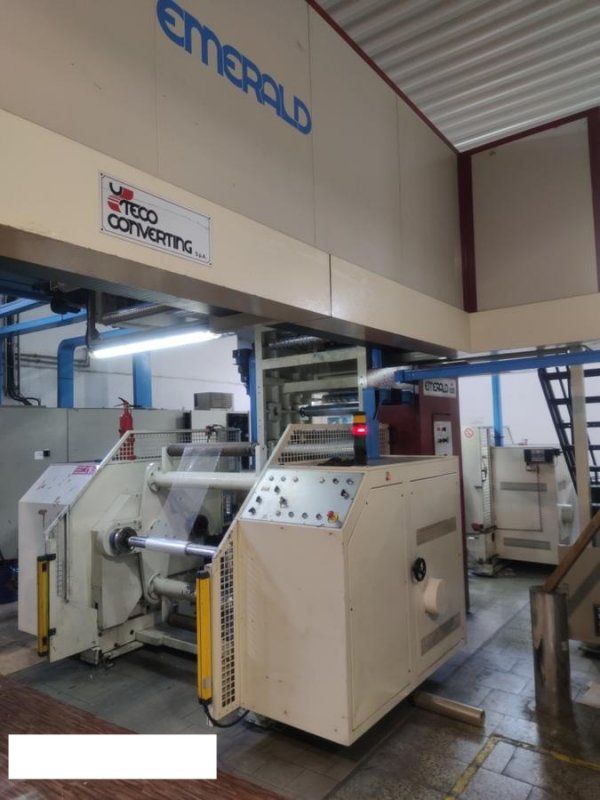

Uteco EMERALD 825 8 800 mm

Flexo printing machine
Number of colors 8
Print possibilityes 8+0
Overhaul/renovation YES CI Drum recoated in 2020
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 850
Print width (mm) 800
Min print repeat (mm) 270
Max print repeat (mm) 650
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Drying 2 zons 4 fan , 4 mt final tunnel
Videocamera yes Eltromat
Web guides Yes in and out
Inking system Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps.
Anilox 21 ceramic anilox sleeves 1x 80 L/cm, 3 x 100 L/cm , 4 x 120 L/cm , 3x 160 L/cm , 3x 200 L/cm ,
1x 255 L/cm , 4x 285 L/cm , 1x 330 L/cm , 1x 340 L/cm
Print Sleeves 10 x each following repeat 270mm , 280 , 300 , 310 , 320 , 340 , 360 , 400 , 520 ; 8 for each
following repeat 330 , 350 , 370 , 380 , 390 , 440 , 450 , 460 , 470 , 500 ,
Twinlock sleeves 8 for each following 350 , 360 , 380 , 410 , 420 , 430 , 80 , 500
