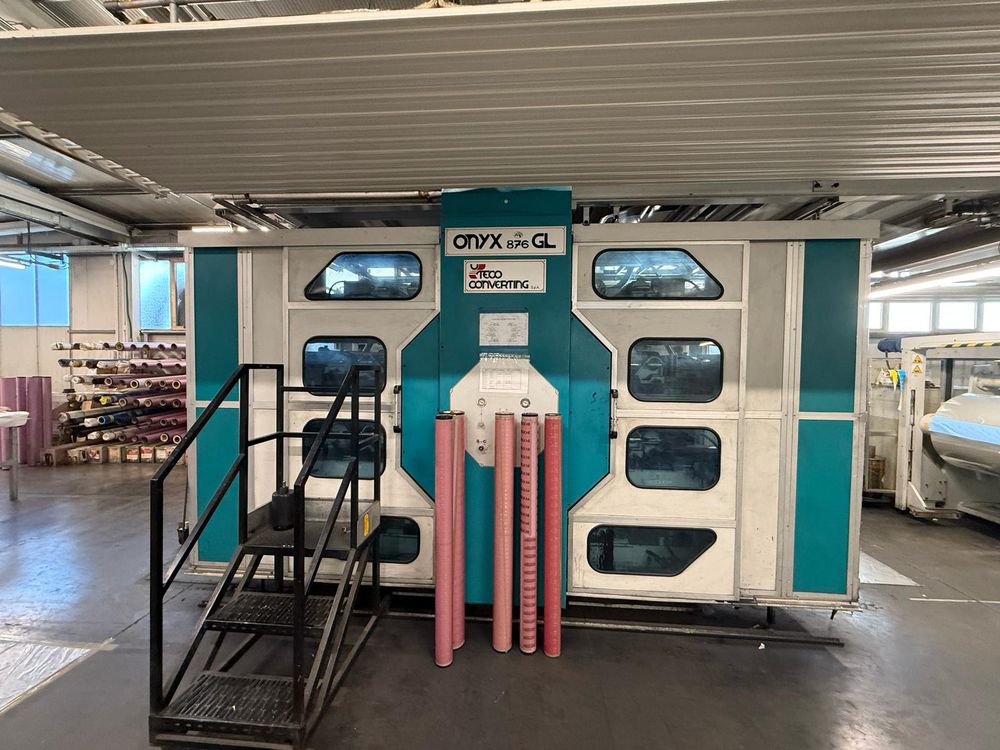

Uteco Onyx 876 GL 8 1400 mm

1.04 Colors (nr) and Type 8 Colors
1.05 Gearless Yes
1.06 Print width (mm) 1400 mm
1.07 Material passage (mm) 1450 mm
1.08 Print development min. – max. (mm) 300 - 780 mm
1.09 Mechanical speed (m/min) 350 m / min
1.10 Material type (kg) Services:
Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
Air pressure: 6 bar
1.13 Inks Solvent based and water based
1.14 Doctor blade groups: quantity N° 8
1.15 Washing of printing units No
1.16 Type of unwinder Automatic
1.17 Max. diameter on unwinder (mm) 1000 mm
1.18 Winder type Automatic
1.19 Max. diameter on winder (mm) 1000 mm
1.20 Heating Gas burners
1.21 Video camera Yes
1.22 Availability Immediate
1.23 Further information :
Gama viscometersCorona treatment
No. 8 print sleeves
No. 8 anilox
No. 2 doctor blades more
No. 1 register control card
No. 2 drives
No. 2 electrical motors
