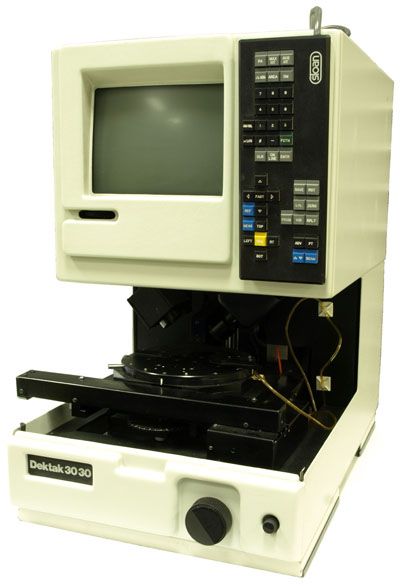

Veeco Dektak 3030 Auto II

Profilometer
Controller Type Microprocessor Controller Type
Accessories Thermal printer is included
Environmental shield is not included
Other Information Measuring Range: 100Å to 1310kÅ
Scan Speed Range: Low, Medium, High
Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range,
20Å in the 1310kÅ range
Data Points per micron: 0.04-- 40
Scan Length 50 microns to 50 mm
Leveling: 2 point programmable or cursor leveling
Maximum sample thickness: 1.75 inches
Motorized stage
Sample stage diameter: 6.375 inches
Sample stage translation (from center): X Axis, ±3 inches, Y Axis -3 inches
Stylus 12.5 micron radius (other sizes are optional)
Unit is tested, see additional images 5 and 6 for sample scans
Power Requirements 120 V 2.0 A 50/60 Hz 1 Phase
