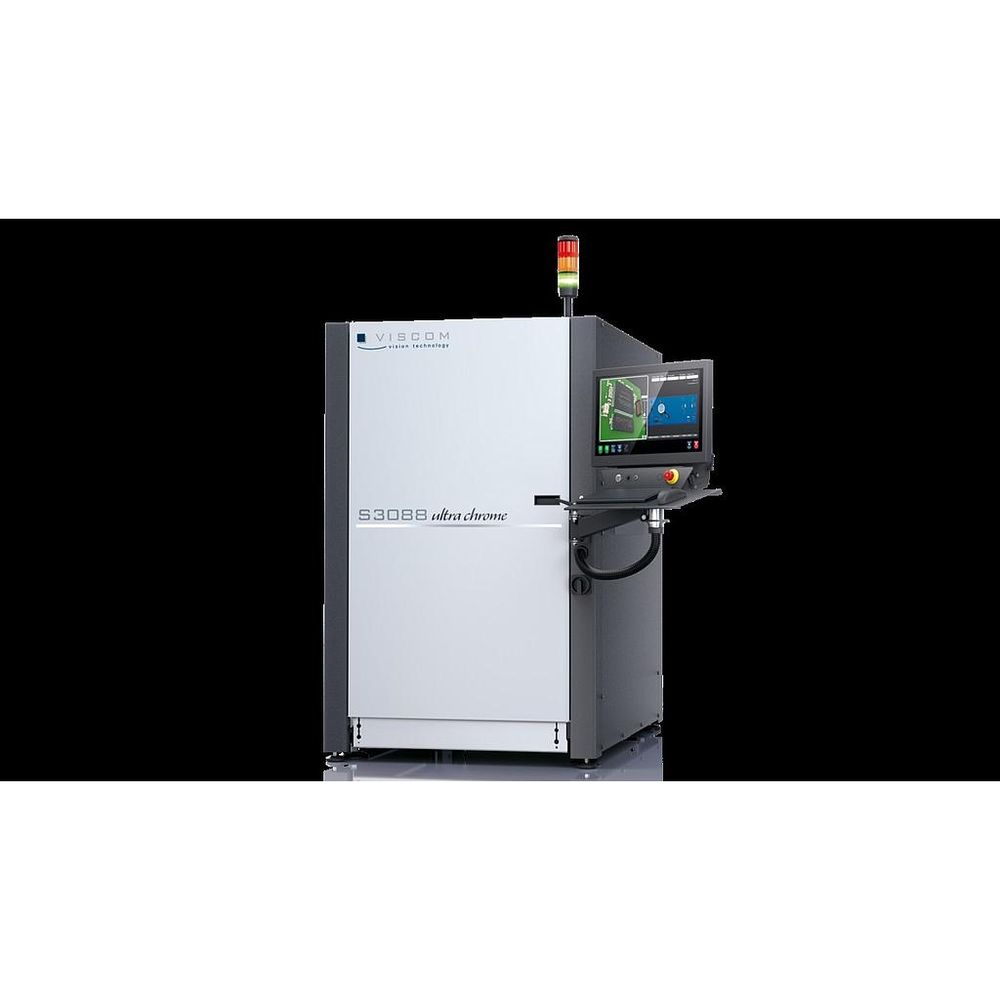

Viscom AOI S3088 Ultra Chrome

AOI 3D S3088 ultra chrome
Vintage: 2019
Working hours: 17 000
3D sensor technology:
* Z-resolution: 0.5 micro metre
* Z-range: up to 30 mm
Angled view camera: 8 mega pixels
Orthogonal camera:
* Resolution:10 micro meter
* FOV: 50 mm x 50 mm
Inspection speed: up to 65 cm²/s
Software: Viscom vVision/EasyPro
Operating system: Windows
Conveyor:
* Single track transport
* PCB dimensions: 508 mm x 508 mm
* Transport height: 850 mm to 950 mm
* Width adjustment: automatic
* PCB clamping: pneumatic
* Upper transport clearance: 50 mm
* Lower tarnsport clearance: 45 mm
Smema interface
Power requirements: 400 V 3-Ph, 8 amps
Pneumatic: 6 bars
Dimensions: w 994 mm x d 1349 mm x H 1565 mm
Weight: 720 Kg
