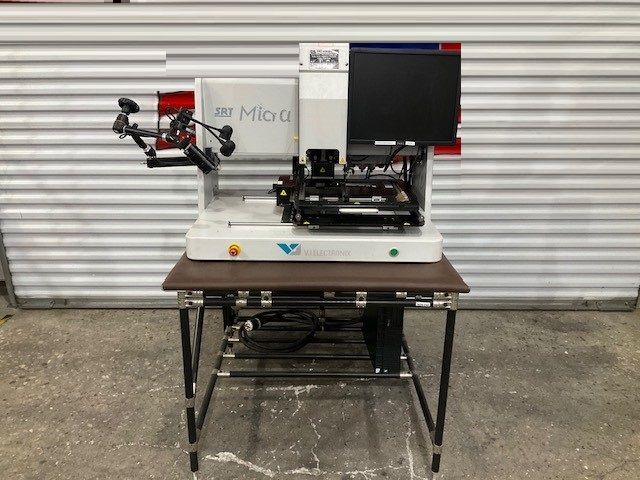

VJ Electronix Micra Rework System

Vintage : AUG 2013
14" x 14" Work Area
203V

Specifications ( See Details above for installed options )
The Micra is best in class for small board that require high-precision.
Built with easy-to-use 1-2-3-GO software, operation of
this rework system is simple and intuitive.
Efficient convection heating provides high thermal throughput,
uniformity, and a repeatable rework process.
Automatic non-contact site scavenging safely removes
residual solder, eliminating potential for damage to pads and
solder mask. Proprietary software provides product traceability,
profile analysis, and sharing of profiles between VJE systems.

Technical Parameters
Placement Capability: 0.0005” (12u) mean + 3s
Maximum Board Size: 12” x 14” (300 x 350mm)
Minimum Component Size: 01005
Maximum Field of View: 1.4” (35mm) Square
Thermocouple Jacks: 4 (8 optional)
Theta Motion: 360°
Top Heater: 1500W
Site Heater: 800W
Area Heater (option): 2400W
