Voortman V806M CONTROL: V806M

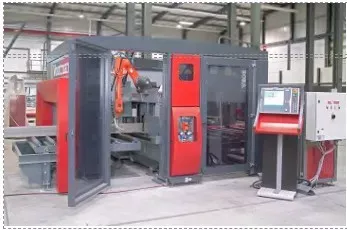

Voortman V806M
YEAR: 2009


COMPRESSED AIR: 105 Gallon per minute (400L/min)
Consumption: 21 Gallon per minute (80L/min)
Plasma gas: O2 (Clean, dry, oil-free)
Max oil content: 18.34 ppm
Max water content: 9.7ppm
Max pressure dew point: 37.4°F
Max particle density: 105 Gallon per minute (400L/min)
Max particle size: 0.6 mil
System Pressure: 145 PSI (10bar)
Min/max. height: .3/8"-23-1/2"
Ambient Temperature: 30 - 90º F max 95% relative humidity
Power supply basic system Fuse basic system*: 3x 400V ….500V + PE 50/60Hz
Operation direction: From Right to L3x 400V ….500V + PE 50/60Hzeft
Min/max. width: 2-½" - 50”
Capacity: 300 lbs/ft
Max. positioning weigh: 20,000 LBS.
Working Height: 30” (+/- 1”)

MACHINE EQUIPPED WITH
Infeed Liftable Cross Transports Truck Width: 51" Supports: 5 Length 13' Infeed Roller Conveyor Overall Length: 59' Overall Width: 40' Feeder Roll Length Measuring System. Hypertherm HPR400XD
Scrap Container
Length measuring system
Telescopic roller conveyors
Hydraulic unit
Control software
