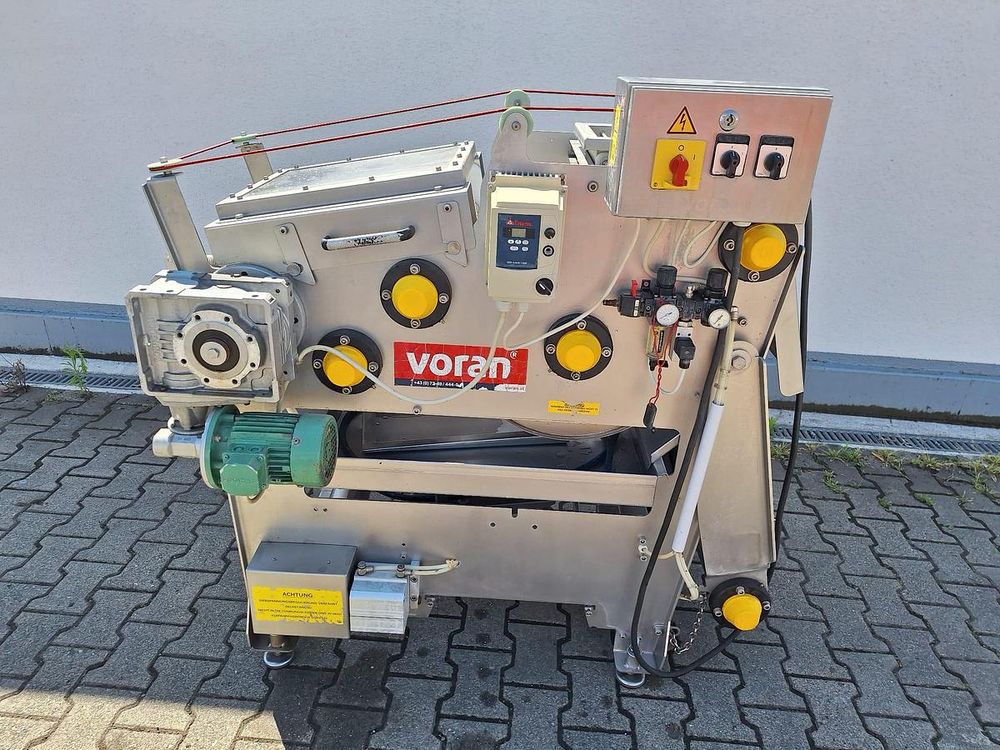

Voran EBP 350

Capacity up to 300 kg/h,
belt width/working width 350/240 mm,
drive 0.37 kW / 400 V / 50 Hz / 3 phases,
including frequency converter

Technical specifications:
Pomace discharge height: 775 mm
Wastewater outlet height: 120 mm
Juice outlet height: 485 mm
Juice outlet connection: 1
Wastewater connection: ø 48.3 mm
Water consumption for cleaning: 2 l/min
Contact time: 1 min
Belt speed: 2 m/min
Juice yield: 70%
Material: 1.4301 / AISI 304
Weight: 355 kg
Application height: 0 - 50 (continuously variable) mm
Application width: 240 mm
Belt length: 4,900 mm
Belt width: 350 mm
Intake height: 1,350 mm
Height: 1,350 mm
Width: 970 mm
Length: 1,290 mm
Fuse rating: 16 A
Electrical connection: 400 V 50 Hz (three-phase)
Motor power: Drive motor 0.37 (0.5 kW) Cleaning motor 0.12 (0.16) kW (hp)
Rated capacity kg/h: 300 kg/h
