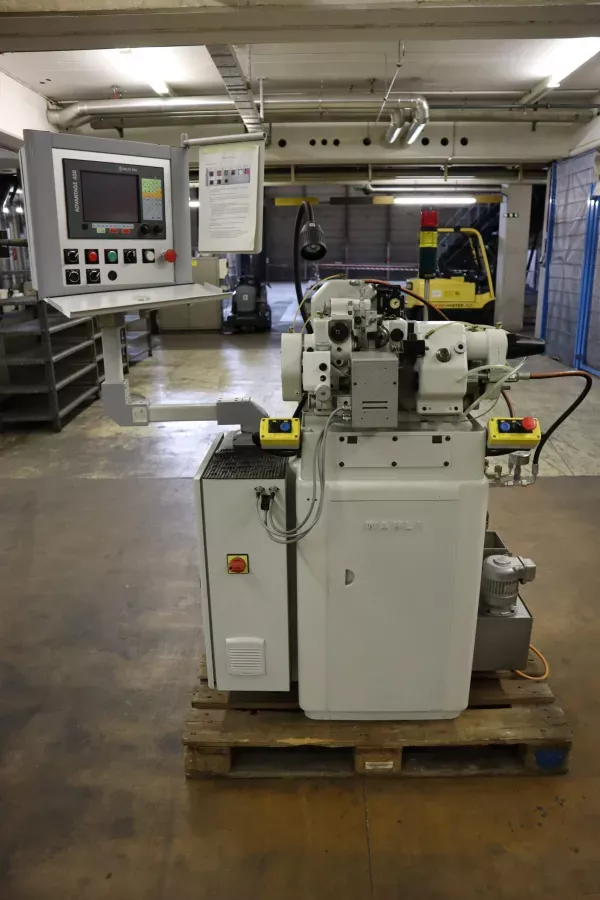

Wahli W90 Variable Speed CNC GEAR CUTTING MACHINE

Control Delta Tau Advantage 400
Tip width 80 mm
Maximum milling length 50 mm
Largest workpiece diameter 40 mm
Interlocking module 0.05 – 1
Number of teeth to be milled 6-200 teeth
Number of teeth with ratio 1:4 6-100 teeth
Number of teeth with division ratio 1:10 up to 200 teeth
Complete set of change gears for machine with part ratio 1:4 64 wheels
Longitudinal feed speed, continuously adjustable 0 – 2 m/min
Return speed, longitudinal 3 m/min

Cutter speeds 660 rpm
Cutter speeds 1450 rpm
Cutter speeds 1850 rpm
Cutter speeds 2500 rpm
Cutter speeds 1350 rpm
Cutter speeds 3000 rpm
Cutter speeds 3800 rpm
Cutter speeds 5300 rpm

Largest axial cutter displacement 10 mm
Max. plunge milling depth 2.5 mm
Greatest distance between axes of milling cutter and work spindle 30 mm
Largest cutter diameter 32 mm
Milling spindle diameter 35 mm
Weight approx. 500 kg
Operating instructions (German)
Operating instructions for the control system
Electrical diagrams
