WDM 403-11-6.58
AMERICA North (USA-Canada-Mexico)

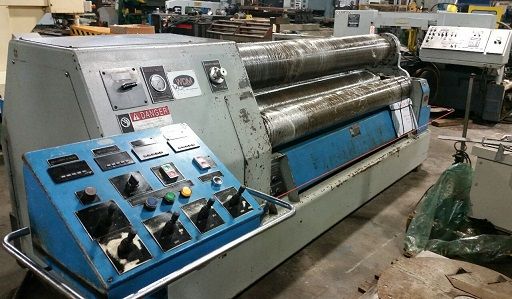

Hydraulic 4-Roll Plate Bending Roll
Refurbished WDM 403-11-6.58
1045 carbon rolls
Hydraulic driven rolls which provide instant start, stop, and reverse
NEMA 12 control cabinet fuse control transformer
Electrics meet NFPA 79 specifications
Thermal overload protection
Two roll drive
SKF Spherical roller bearings on all main bearings
LSHT type hydraulic drive motor with high volumetric and overall efficiency
Infinitely variable speed from 0 to 22 FPM
Safety cable around perimeter of machine
Machine is controlled by hydraulic directional valves located on machine drive housing
Rolls driven through planetary or spur gear type speed reducers with brake, (s)
Dial/pointer type indicators to show roll position
Machine sets directly on level floor
Ability to roll symmetrical steel sections without additional attachments
Hydraulic operated drop end support
Component suppliers include some or all of the following: SKF, Torrington, Continental, Auburn,
White, Torque Hub, Telemechanique, Modular Controls, Hoffman, Red Lion, Morse, Hydra,
NTN, WRG Gears, Prince, Browning, HydraForce, Double A
Optional Equipment Standard on this Machine
Hardened Rolls
3/8", 1/2", 5/8" grooves for rods, tubes, and sheets with rolled edges
425-4 Control Automatic Free Standing
