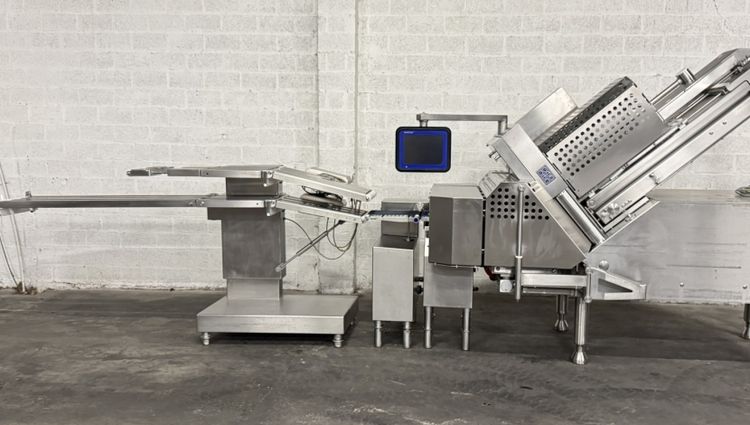

Weber CCS 902 SLC Slicer

boneless meat, sausage, cheese, or fish
400V, 50 Hz/3/N/PE
32A
approx. 10 kW
compressed air connection values: min. pressure 4 bar

cutting system sickle blade: max. speed at blade head WSK 2,000 min-1
Drive: feed, cup, portioning unit CCU: servo motors
Drive power transmission: toothed belts
Feed power transmission: precision ball screw drive

Cutting thickness: 0.1 to 100 mm (depending on product and cutting capacity)
product passage width: adjustable up to max. 380 mm
product passage height: adjustable from 125 to max. 180 mm (optionally up to 200 mm)
programming: dialogue via touch screen
program memory locations: 100
2 sickle blades

total dimensions (L x W x H): ± 3,000 x 1,600 x 2,700 mm

Wibotec" single-pan weighing scale
Type Continuous checkweigher 200 - Web 99T 355 -365 Web Module

Length: approx. 485 mm
Width: approx. 535 mm
Weight: approx. 150 kg
Power transmission of the drives: gears
9 g - 3750 g

+
Monosorting rocker
Type CCR
Length: approx. 450 mm
Width: approx. 380 mm
Weight: 250 kg
Drive power transmission: toothed belts
Motor type: asynchronous motors or servo drives, depending on the slicer type

+
Conveyor belt
Type CCE
total dimensions (L x W x H): ± 4,100 x 960 x 1,500 mm
drive power transmission: toothed belts
motor type: asynchronous motors or servo drives
