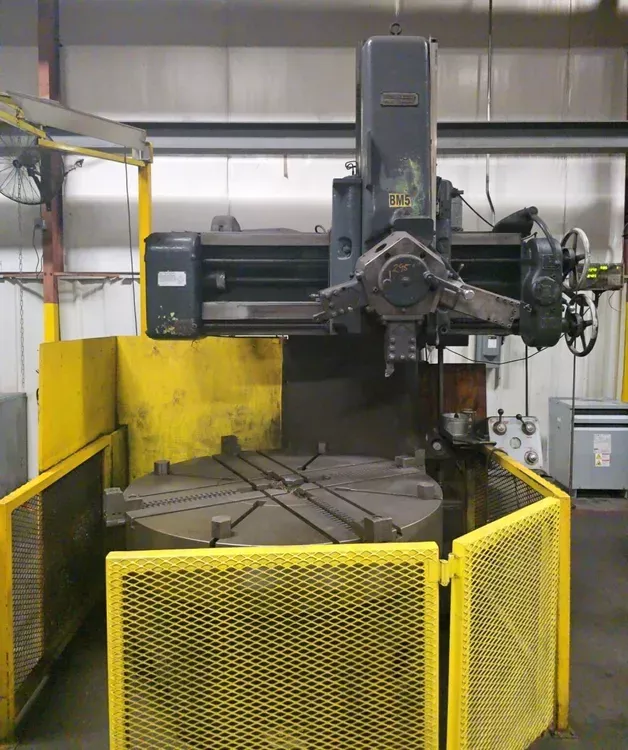

Webster & Bennett DH 1952 Swing: 75"

Table diameter: 65"
Max turning diameter (U toolholder): 61"
Max turning diameter (B2X toolholder): 64"
Height under turret: 35"
Height under cross-slide: 24"
Height under cross-slide with auto trip: 20.5"
Vertical feed of turret: 26"
Max boring length (bore > 28"): 24"
Max boring length (bore ≤ 28"): 16"
Spindle bore diameter: 3.25"
Turret horizontal feed (chuck center outward): 40"
Turret hole diameter: 3"
Number of speeds: 12
Number of feeds: 12
Main motor power: 20–30 HP
Main motor speed: 1440 RPM
Rapid traverse motor power: 3 HP
Rapid traverse motor speed: 1430 RPM
Driving pulley speed: 1000 RPM
Machine dimensions: 103" x 130" x 119"
Transit height: 105"
Total height required: 119"
Approximate weight: 22400 lbs

Mitutoyo digital readout
Full chip guard
